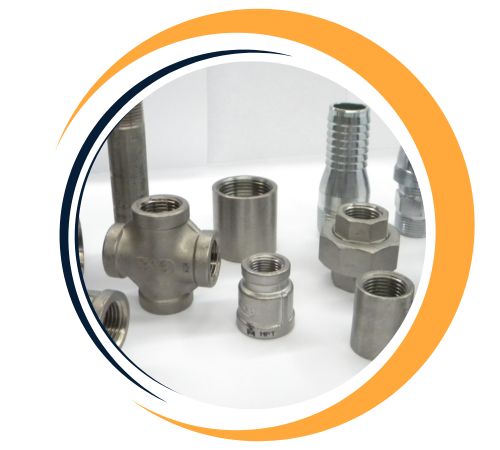

Tolu Fittings is a reputable manufacturer and supplier located in Abuja, Nigeria, known for its top-notch Alloy Steel F11 Forged Fittings. With a strong focus on excellence and precision engineering, the company delivers fittings that are not only durable but also reliable, designed to thrive in tough industrial environments. These fittings find their place in various sectors, including oil and gas, power generation, petrochemical, and refinery industries. Tolu Fittings guarantees that every product adheres to international standards, providing exceptional strength, resistance to corrosion, and the ability to withstand high temperatures. Their Alloy Steel F11 Forged Fittings come in a range of sizes and configurations to meet the diverse needs of piping systems.
| Specification : | ASTM A182 F11 Forged Fittings |
|---|---|
| Thread Connections | ASME B16.11 (Socket Welding and Threaded) Fittings, MSS-SP-83 (Class Unions) Fittings, ASME B16.3 (Malleable Iron Fittings) Fittings, ASME B16.4 ( Gray Iron Fittings) Fittings, ASME B16.39 (Malleable Iron Unions) Fittings, ASME B16.34 (Valves — Flanged) Fittings, ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#) Fittings. |
| Standards | ASME B16.11 (American Standard), Bs3799, MSS SP 79, JIS B2302, MSS-SP-97 (Threadolet), MSS-SP-83 (Union), ASME B36.19 (Nipple) |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT Fittings |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
| Size | Threaded Fittings = ½” – 4” |
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
Alloy Steel F11 Forged Fittings are primarily made up of chromium (1.0–1.5%), molybdenum (0.44–0.65%), carbon (up to 0.15%), along with trace amounts of manganese, silicon, and phosphorus. This specific composition boosts their hardness, tensile strength, and resistance to oxidation and creep at elevated temperatures. On the mechanical side, these fittings showcase impressive tensile strength, outstanding toughness, and good fatigue resistance, making them perfect for high-pressure and high-temperature applications. Their well-balanced chemical structure ensures a long service life and excellent performance even under mechanical stress.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F11 Forged Fittings | 0.05 – 0.15 | 0.3 – 0.6 | 0.5 – 1 | 0.03 | 0.03 | 1 – 1.5 | 0.044 – 0.65 |
| Gr | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F11 Forged Fittings | 205 | 415 | 20 |
Tolu Fittings is a leading supplier of Alloy Steel F11 Forged Fittings in Abuja, Nigeria. We offer an extensive range of Alloy Steel F11 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F11 Forged Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Alloy Steel F11 Forged Fittings are primarily composed of carbon, manganese, phosphorus, sulfur, and silicon, with chromium (2.25-3%) and molybdenum (0.9-1.1%) as key alloying elements. Chromium enhances oxidation and corrosion resistance, while molybdenum improves strength and heat resistance. The mechanical properties include a tensile strength of approximately 585 MPa, yield strength of 415 MPa, and an elongation of around 20%. These fittings also exhibit good impact toughness, making them ideal for high-pressure, high-temperature applications. Alloy Steel F11 Forged Fittings offer long-lasting performance in demanding industrial environments.
Yes, custom sizes for Alloy Steel F11 Forged Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F11 Forged Fittings | K11597 | 1.7338 | 1-1/4Cr-1/2Mo |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Alloy Steel F11 Forged Fittings are widely utilized in industries that require exceptional strength and resistance to high temperatures and corrosion. You’ll commonly find them in power plants, refineries, chemical processing facilities, and the oil and gas sector. They play a crucial role in systems that transport steam, gas, or corrosive fluids under high pressure. These fittings are perfect for connecting pipes, valves, and equipment where maintaining structural integrity is essential. Their capability to handle thermal expansion and mechanical stress makes them ideal for boilers, heat exchangers, and superheaters, ensuring dependable performance in critical service conditions.
