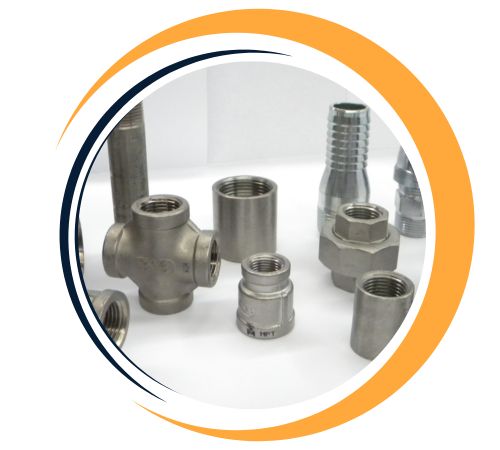

Tolu Fittings, located in Abuja, Nigeria, has earned a solid reputation as a reliable manufacturer and supplier of top-notch industrial fittings, with a focus on Alloy Steel F5 Forged Fittings. These fittings are celebrated for their strength, durability, and precision, designed to handle the tough demands of high-pressure and high-temperature environments. You’ll find Alloy Steel F5 Forged Fittings in various sectors, including oil and gas, petrochemicals, power generation, and chemicals, where dependable performance is a must. At Tolu Fittings, we prioritize strict quality control, precise dimensions, and timely delivery, making our products the go-to choice for industrial clients in search of exceptional forged steel solutions.
| Specification : | ASTM A182 F5 Forged Fittings |
|---|---|
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
| Thread Connections | ASME B16.11 (Socket Welding and Threaded), MSS-SP-83 (Class Unions), ASME B16.3 (Malleable Iron Fittings), ASME B16.4 ( Gray Iron Fittings), ASME B16.39 (Malleable Iron Unions), ASME B16.34 (Valves — Flanged), ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#). |
| Standards | ASME B16.11 (American Standard) Fittings, Bs3799 Fittings, MSS SP 79 Fittings, JIS B2302 Fittings, MSS-SP-97 (Threadolet) Fittings, MSS-SP-83 (Union) Fittings, ASME B36.19 (Nipple) Fittings |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT Fittings |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
| Size | Threaded Fittings = ½” – 4” |
Alloy Steel F5 Forged Fittings are made up of a blend of carbon, manganese, chromium, molybdenum, and some trace elements that boost their strength, hardness, and resistance to wear and corrosion. These fittings showcase impressive mechanical properties, including high tensile strength, yield strength, impact resistance, and toughness, making them perfect for challenging industrial settings. The forging process enhances their structural integrity and removes internal flaws, ensuring consistency and reliability. With their precise dimensions, high-pressure tolerance, and thermal stability, Alloy Steel F5 Forged Fittings deliver long-lasting performance in critical piping and pressure systems.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F5 Forged Fittings | 0.15 | 0.3 – 0.6 | 0.5 | 0.03 | 0.03 | 4 – 6 | 0.044 – 0.65 |
| Gr | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F5 Forged Fittings | 275 | 485 | 20 |
Tolu Fittings is a leading supplier of Alloy Steel F5 Forged Fittings in Abuja, Nigeria. We offer an extensive range of Alloy Steel F5 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F5 Forged Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Alloy Steel F5 Forged Fittings offer numerous advantages, making them ideal for critical industrial applications. Their high chromium and molybdenum content provides excellent corrosion and oxidation resistance, ensuring durability in harsh environments. These fittings deliver exceptional strength and thermal stability, performing reliably in high-pressure and high-temperature conditions. The forged construction enhances their mechanical properties, ensuring secure, leak-proof connections. They are also resistant to wear and deformation, extending the lifespan of pipeline systems. Cost-effective and versatile, Alloy Steel F5 Forged Fittings are a preferred choice for industries like oil, gas, and power generation.
Yes, custom sizes for Alloy Steel F5 Forged Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F5 Forged Fittings | K41545 | 1.7362 | 5Cr-1/2Mo |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Alloy Steel F5 Forged Fittings find their place in various industries that demand robust and high-performance connections. You’ll commonly see them in oil and gas pipelines, petrochemical facilities, chemical processing plants, power generation systems, and pressure vessels. They excel in high-pressure and high-temperature situations, such as steam, gas, and oil pipelines. Additionally, these fittings are utilized in refineries, heat exchangers, and industrial machinery where strength, reliability, and safety are paramount. Tolu Fittings is committed to providing top-quality Alloy Steel F5 Forged Fittings that meet the highest standards.
