Tolu Fittings, a top-notch manufacturer and supplier located in Abuja, Nigeria, is well-known for its high-quality Alloy Steel WP9 Buttweld Fittings. These fittings are designed to handle the tough demands of industries that need high strength, corrosion resistance, and thermal stability. Crafted from premium-grade alloy steel, Tolu Fittings guarantees precision, durability, and adherence to global standards. Their Alloy Steel WP9 Buttweld Fittings find extensive use in power plants, refineries, and chemical industries, where high-pressure and high-temperature operations require exceptional performance and reliability over extended service periods.
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
The Alloy Steel WP9 Buttweld Fittings primarily consist of chromium (8–10%), molybdenum (0.9–1.1%), and carbon (up to 0.15%), along with small amounts of manganese, silicon, and iron. They boast impressive tensile strength of about 585 MPa and yield strength of roughly 415 MPa. This material offers excellent resistance to oxidation, scaling, and creep at high temperatures. Its strong mechanical properties, paired with outstanding weldability and toughness, make it perfect for high-pressure, high-temperature applications in challenging environments.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP9 | ≤0.15 | ≤0.6 | 1.00 | ≤0.03 | ≤0.03 | 8-10 | 0.99-1.10 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP9 | 380 min | 585 min | ≥30 |

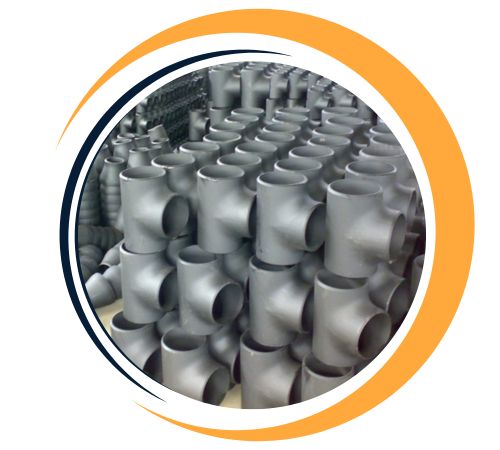

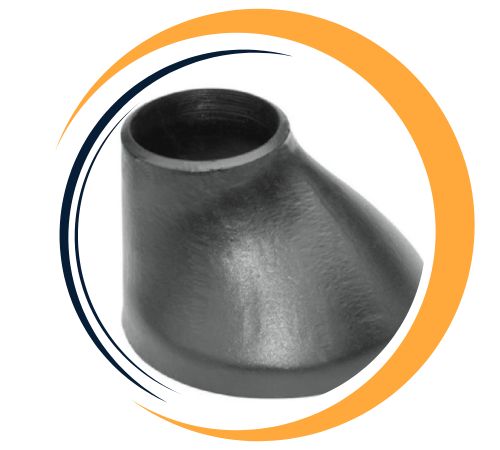

Tolu Fittings one of the largest suppliers of Alloy Steel WP9 Buttweld Fittings in Abuja, Nigeria. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Alloy Steel WP9 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Alloy Steel WP9 Buttweld Fittings in the Nigeria.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP9 Buttweld Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Alloy Steel WP9 Buttweld Fittings offer several advantages, making them ideal for high-temperature and high-pressure applications. Their composition, featuring chromium and molybdenum, enhances their resistance to oxidation, corrosion, and wear, ensuring long-lasting performance. WP9 Fittings are highly durable, with excellent strength and weldability, making them suitable for demanding industries such as power generation, petrochemical, and oil & gas. They provide superior resistance to thermal fatigue and carburization, ensuring the integrity of piping systems under extreme conditions. Additionally, they offer ease of installation and minimal maintenance over time.
| Pressure-Temperature ratings for ASME B16.9 ASTM A234 WP9 Pipe Fittings(psig) | |||||
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 Inches | 1 1/4 – 2 Inches | 2 1/2 – 3 Inches | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Yes, custom sizes are available for Alloy Steel WP9 Buttweld Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@tolufittings.com.
Alloy Steel WP9 Buttweld Fittings are widely utilized in thermal power plants, oil and gas refineries, chemical processing facilities, and boiler systems. Their remarkable resistance to corrosion, heat, and mechanical stress makes them ideal for steam lines, superheaters, heat exchangers, and pressure vessels. These fittings ensure leak-free connections and a long service life, even when faced with fluctuating temperatures and pressures. Industries favor WP9 fittings for their ability to maintain structural integrity and performance in demanding operational conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
