Tolu Fittings, a leading manufacturer and supplier located in Abuja, Nigeria, is all about high-quality Alloy Steel WP9 Pipe Fittings. Built to last, these fittings are crafted to handle extreme pressure, high temperatures, and tough environments. Tolu Fittings takes pride in ensuring that every Alloy Steel WP9 Pipe Fitting meets rigorous quality standards, providing precision-engineered solutions for essential piping systems. Industries in oil and gas, petrochemicals, power generation, and construction trust these fittings for their durability, seamless installation, and efficient flow management, making Tolu Fittings a dependable partner for demanding industrial needs.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

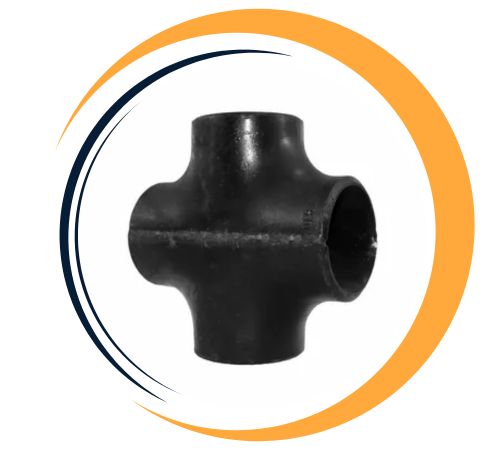

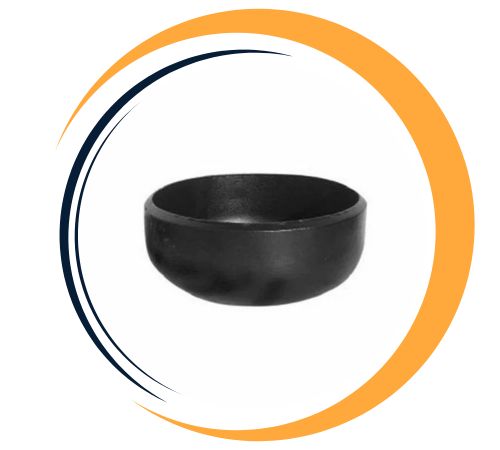

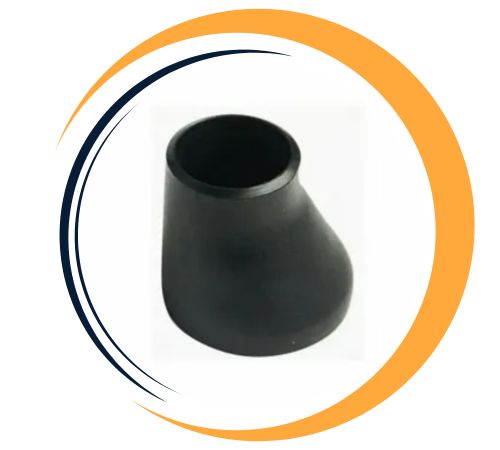

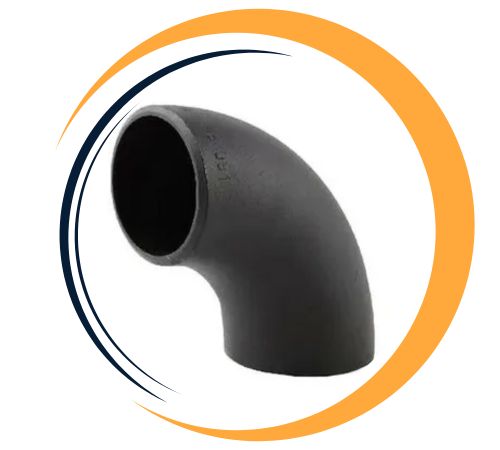

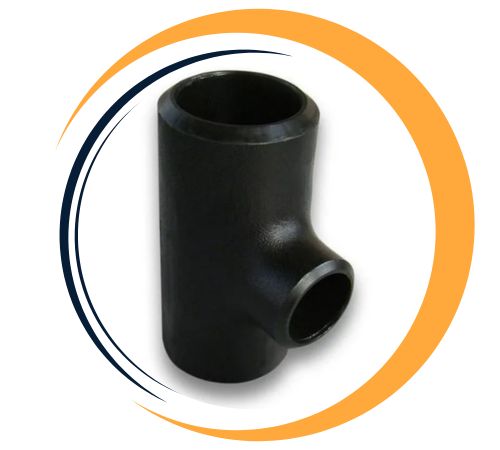

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Alloy Steel WP9 Pipe Fittings are made from a blend of chromium, molybdenum, and carbon, which gives them outstanding strength, hardness, and resistance to oxidation and corrosion. They boast impressive mechanical properties, including high tensile and yield strength, impact resistance, and toughness, making them reliable under high-pressure and high-temperature situations. The careful forging and manufacturing process improves the grain structure, ensuring consistency, durability, and structural integrity. These fittings are designed to meet international standards, offering long-lasting, safe, and efficient solutions for critical industrial piping systems.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP9 | ≤0.15 | ≤0.6 | 1.00 | ≤0.03 | ≤0.03 | 8-10 | 0.90-1.10 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP9 | 380 min | 585 min | ≥30 |
Tolu Fittings is a leading supplier of Alloy Steel WP9 Pipe Fittings in Abuja, Nigeria. We offer an extensive range of Alloy Steel WP9 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP9 Pipe Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP9 Pipe Fittings offer exceptional strength and resistance to high temperatures, making them ideal for high-pressure applications in power generation and petrochemical processing industries. They exhibit excellent oxidation, corrosion, and creep resistance, ensuring long-term durability. These fittings maintain structural integrity at elevated temperatures, enhancing system reliability. Additionally, Alloy Steel WP9 is known for its ease of fabrication, weldability, and high tensile strength, ensuring smooth installation and long-lasting performance in harsh environments. Their versatility makes them a preferred choice for critical piping systems.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP9 Pipe Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
You’ll find Alloy Steel WP9 Pipe Fittings in oil and gas pipelines, petrochemical plants, refineries, and chemical processing industries where top performance is a must. They’re also perfect for power generation, offshore platforms, water treatment, and industrial machinery applications. With their ability to endure harsh conditions and maintain efficient fluid flow, Alloy Steel WP9 Pipe Fittings deliver reliable, long-term performance, supporting the safe and efficient operation of vital infrastructure and high-demand industrial systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
