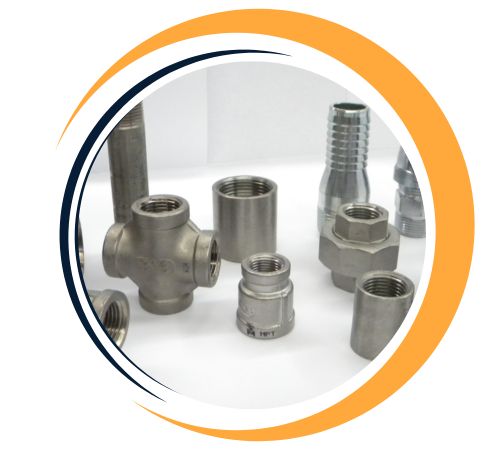

Tolu Fittings, a well-respected manufacturer and supplier based in Abuja, Nigeria, specializes in top-notch **ASTM A860 WPHY 60 Pipe Fittings** that are built to handle the rigors of high-pressure and high-temperature industrial applications. Crafted from high-quality carbon steel, these fittings offer outstanding strength, durability, and resistance to corrosion. Tolu Fittings prides itself on precision engineering and reliable performance, ensuring that their WPHY 60 fittings meet international standards, making them perfect for critical pipeline systems in the oil, gas, and power industries.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | API 5L X56 |
| Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Thickness of Fitting | SCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | Seamless Butt-Weld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Bending Radius | Radius=1 D, 2D, 3 D, 5D, 6D, 8 D, 10D |
| Types | Welded | Seamless | Fabricated |
| Process of Manufacturing | Push, Press, Cast, Forge. |
The ASTM A860 WPHY 60 Pipe Fittings are made from a blend of carbon, manganese, phosphorus, sulfur, and silicon, along with trace amounts of alloying elements like vanadium and niobium to boost their strength and toughness. These fittings boast a minimum yield strength of 414 MPa and a tensile strength ranging from 517 to 655 MPa, along with excellent hardness and impact resistance, guaranteeing dependable performance even in high-stress situations.
| Grade | Cr | C | Cu | Mn | Cb | S | P | V | Si | Ni | Mo | Ti |
| A860 WPHY 52 Fitting | 0.30 | 0.20 | 0.35 | 1.00-1.45 | 0.06 | 0.03 | 0.01 | 0.10 | 0.15-0.40 | 0.50 | 0.25 | 0.05 |
| Fittings Element | Tensile Strength | Elongation | Yield Strength (0.2%Offset) |
| X56 | 515-690 | 28 % | 66 |
Tolu Fittings is a leading supplier of ASTM A860 WPHY 60 Pipe Fittings in Abuja, Nigeria. We offer an extensive range of ASTM A860 WPHY 60 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose ASTM A860 WPHY 60 Pipe Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
ASTM A860 WPHY 60 Pipe Fittings offer several key advantages, including exceptional strength and durability, making them ideal for high-pressure, high-stress pipeline systems. With a high tensile strength of 620 MPa and yield strength of 450 MPa, these fittings provide reliable performance in extreme environments. Their excellent resistance to impact and corrosion ensures long-lasting performance in challenging conditions, such as offshore drilling, oil, and gas pipelines. ASTM A860 WPHY 60 fittings are engineered for secure, leak-proof connections, reducing maintenance needs and ensuring dependable, efficient pipeline operations across various industries.
Yes, custom sizes for ASTM A860 WPHY 60 Pipe Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
You’ll find ASTM A860 WPHY 60 Pipe Fittings commonly used in sectors such as petroleum refining, natural gas processing, offshore drilling, and power generation. They are particularly suited for high-pressure pipelines, compressor stations, and refineries where robust mechanical strength and leak-proof connections are essential. Renowned for their longevity, corrosion resistance, and precise dimensions, these fittings deliver reliable performance in even the toughest industrial environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
