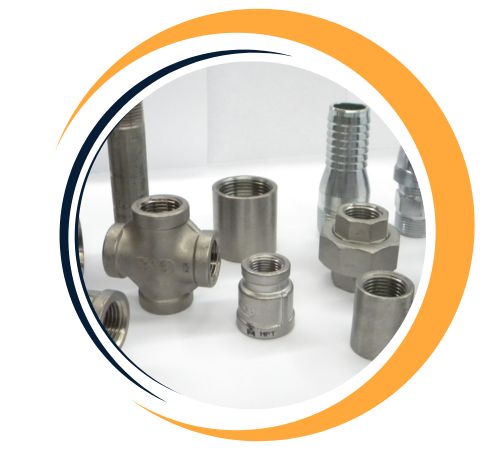

Tolu Fittings, a reputable manufacturer and supplier located in Abuja, Nigeria, specializes in high-quality **ASTM A860 WPHY 70 Pipe Fittings** that are built to excel in high-pressure and high-temperature industrial settings. Made from top-notch carbon steel, these fittings are designed for exceptional durability, toughness, and resistance to wear, corrosion, and stress. Tolu Fittings guarantees that every WPHY 70 fitting adheres to strict international standards, ensuring reliable and leak-proof connections for essential piping systems.
| size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
|---|---|
| Dimensions | BS4504, ASME B16.28, ASME/ANSI B16.9, MSS-SP-43, BS4504, BS1560, BS10 |
| Thickness | SCH20, SCH 100, SCH30, STD SCH40, SCH10, SCH60, XS, SCH 80, SCH 120, SCH 140, SCH 160, XXS |
| Type | DN15-DN1200 |
| Connection | Welding |
| Elbows Manufacturer | Angle : 1.0D, 22.5 deg, 90 deg, 30deg, 45 deg, 180 deg, 5D, 6D, 1.5D, 2.0D, 2.5D, 3D, 4D, 7D-40D . Standard: ASME B16.9, ASME B16.28, BS, GB, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, ISO |
| Manufacturing process | Press, Push, Forge, Cast, etc. |
| Surface treatment | Sand Rolling, Sand blasting, Sand Blasting |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills | USA, Korean, Japanese, Indian, European, Ukraine, Russian |
| Key markets and industries |
|
| Specialized Manufacturer of | Pipe Bend, Crosses, 45º Elbows, Reducers, Tees, 90º Elbows, Pipe Cap, Stub End |
The ASTM A860 WPHY 70 Pipe Fittings are made up of carbon, manganese, phosphorus, sulfur, and silicon, along with micro-alloying elements like vanadium, niobium, and titanium that boost their strength and impact resistance. They feature a minimum yield strength of 483 MPa and a tensile strength ranging from 655 to 760 MPa, providing remarkable toughness and durability even in the harshest conditions.
|
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
Cu |
Ti |
V |
Cb |
Al |
|
|
A860 |
0.20 |
1.00-1.45 |
0.03 |
0.01 |
0.15-0.40 |
0.50 |
0.30 |
0.25 |
0.35 |
0.05 |
0.10 |
0.04 |
0.06 |
| Element | Tensile Strength(Min PSI) | Yield Strength (Min PSI) | Elongation(%, in 2in.) |
| WPHY 70 | 82000 PSI | 70000 PSI | 20 % |
Tolu Fittings is a leading supplier of ASTM A860 WPHY 70 Pipe Fittings in Abuja, Nigeria. We offer an extensive range of ASTM A860 WPHY 70 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose ASTM A860 WPHY 70 Pipe Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
ASTM A860 WPHY 70 Pipe Fittings offer several key advantages, including exceptional strength and durability, with a tensile strength of 760 MPa and yield strength of 520 MPa, making them ideal for high-pressure applications. These fittings are highly resistant to impact, corrosion, and wear, ensuring long-lasting performance in harsh environments. Their excellent toughness makes them suitable for low-temperature and offshore applications. Designed for secure, leak-proof connections, ASTM A860 WPHY 70 fittings reduce maintenance and downtime, providing a reliable and cost-effective solution for critical pipeline systems in industries like oil, gas, and petrochemicals.
Yes, custom sizes for ASTM A860 WPHY 70 Pipe Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
These fittings are commonly utilized in oil and gas pipelines, refineries, petrochemical plants, and power generation facilities. They are perfect for transporting fluids and gases under high pressure, ensuring safety and longevity. With their excellent weldability, mechanical strength, and resistance to corrosion, they are the go-to choice for demanding industrial applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
