Tolu Fittings, a well-respected manufacturer and supplier located in Abuja, Nigeria, proudly presents a top-notch selection of **Equal, Unequal, and Reducing Cross fittings** tailored for high-performance piping systems. These fittings are designed to connect four pipes at right angles, ensuring that fluids flow smoothly across various sections of the pipeline. Crafted from high-quality materials like stainless steel, carbon steel, alloy steel, and duplex steel, these crosses offer outstanding strength, durability, and impressive resistance to both corrosion and pressure.
An **Equal Cross** has all four outlets of the same diameter, which allows for consistent flow distribution in every direction. In contrast, an **Unequal or Reducing Cross** features one or more outlets of different sizes, making it perfect for systems that need to manage or redirect flow between pipes of varying diameters. Each fitting is meticulously engineered to ensure leak-proof performance and precise dimensions.

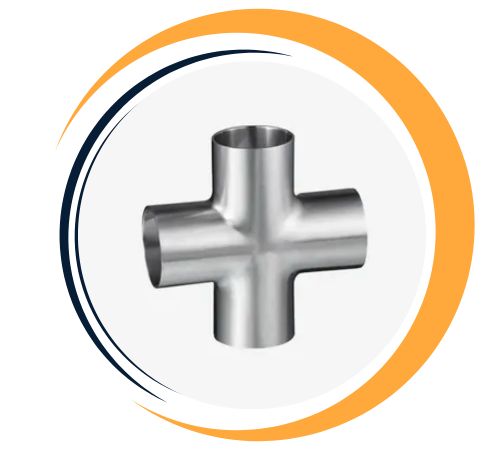

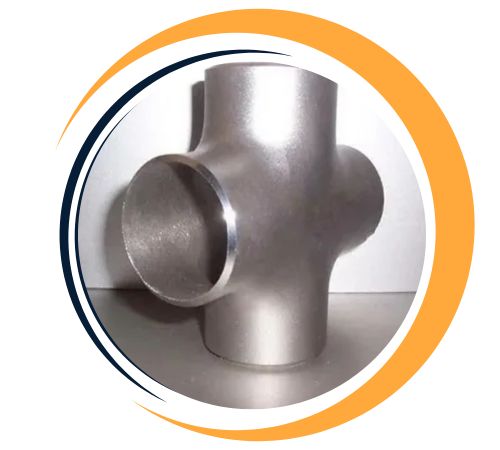

| Buttweld Equal Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Equal Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Equal Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Equal Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Equal Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Equal Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Equal Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

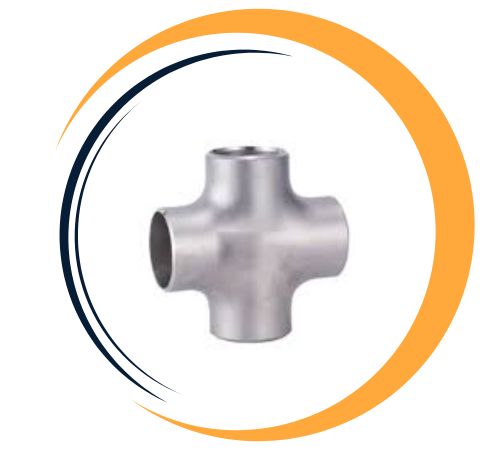

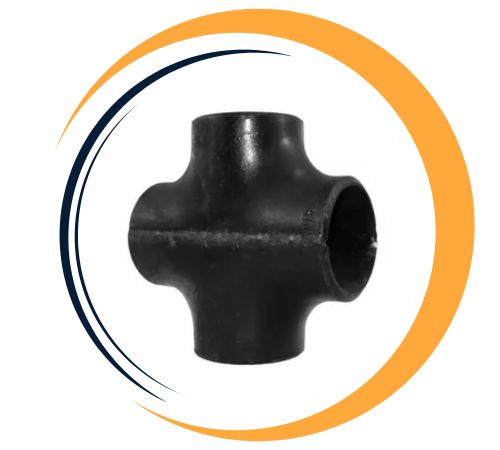

| Buttweld Unequal Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Unequal Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Unequal Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Unequal Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Unequal Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Unequal Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Unequal Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Buttweld Reducing Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Reducing Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Reducing Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Reducing Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Reducing Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Reducing Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Reducing Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Tolu Fittings is a leading supplier of Equal/ Unequal/ Reducing Cross in Abuja, Nigeria. We offer an extensive range of Equal/ Unequal/ Reducing Cross, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Equal/ Unequal/ Reducing Cross from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
These pipe fittings provide versatile solutions for branching in piping systems. Equal Cross fittings ensure consistent flow by maintaining uniform diameter across all outlets, which is ideal for balanced distribution. Unequal Cross fittings accommodate varied pipe sizes, facilitating transitions in systems with different flow requirements. Reducing Cross fittings offers seamless connections to smaller branches, optimizing space and material usage. All types deliver excellent leak resistance, durability, and compatibility with various materials. They simplify installation, support high-pressure environments, and enhance system efficiency, ensuring long-term reliability across industrial and commercial applications.
| Nominal Pipe Size (NPS) |
DN |
Outside Diameter at Bevel |
Center- to-End |
|
|
Run.C |
Outlet. M[Notes(1) and (2)] | |||
| 1/2 | 15 | 21.3 | 25 | 25 |
| 3/4 | 20 | 26.7 | 29 | 29 |
| 1 | 25 | 33.4 | 38 | 38 |
| 1-1/4 | 32 | 42.2 | 48 | 48 |
| 1-1/2 | 40 | 48.3 | 57 | 57 |
| 2 | 50 | 60.3 | 64 | 64 |
| 2-1/2 | 65 | 73.0 | 76 | 76 |
| 3 | 80 | 88.9 | 86 | 86 |
| 3-1/2 | 90 | 101.6 | 95 | 95 |
| 4 | 100 | 114.3 | 105 | 105 |
| 5 | 125 | 141.3 | 124 | 124 |
| 6 | 150 | 168.3 | 143 | 143 |
| 8 | 200 | 219.1 | 178 | 178 |
| 10 | 250 | 273.0 | 216 | 216 |
| 12 | 300 | 323.8 | 254 | 254 |
| 14 | 350 | 355.6 | 279 | 279 |
| 16 | 400 | 406.4 | 305 | 305 |
| 18 | 450 | 457 | 343 | 343 |
| 20 | 500 | 508 | 381 | 381 |
| 22 | 550 | 559 | 419 | 419 |
| 24 | 600 | 610 | 432 | 432 |
| 26 | 650 | 660 | 495 | 495 |
| 28 | 700 | 711 | 521 | 521 |
| 30 | 750 | 762 | 559 | 559 |
| 32 | 800 | 813 | 597 | 597 |
| 34 | 850 | 864 | 635 | 635 |
| 36 | 900 | 914 | 673 | 673 |
| 38 | 950 | 965 | 711 | 711 |
| 40 | 1000 | 1016 | 749 | 749 |
| 42 | 1050 | 1067 | 762 | 711 |
| 44 | 1100 | 1118 | 813 | 762 |
| 46 | 1150 | 1168 | 851 | 800 |
| 48 | 1200 | 1219 | 889 | 838 |
Yes, custom sizes for Equal/ Unequal/ Reducing Cross are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.

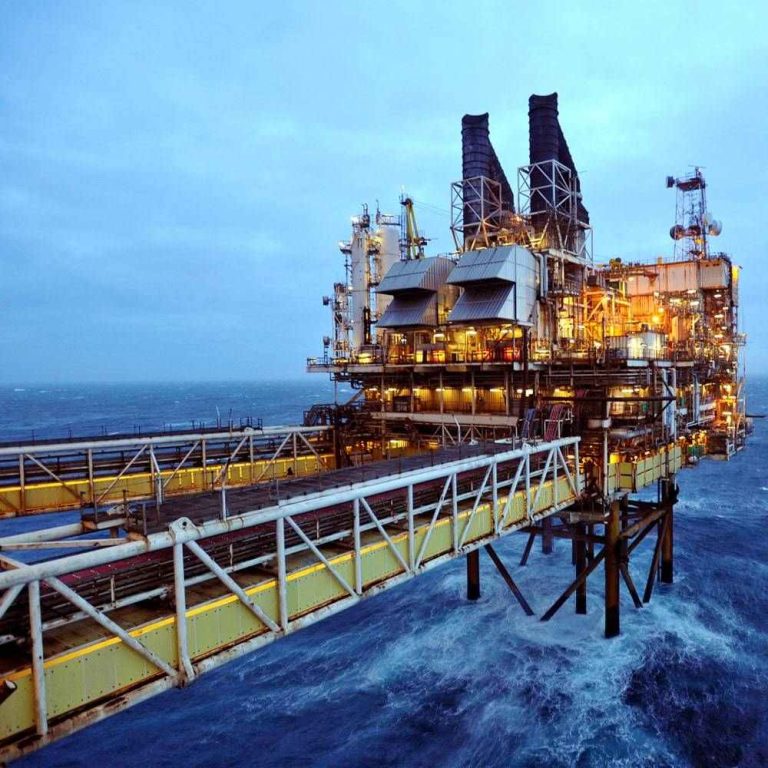

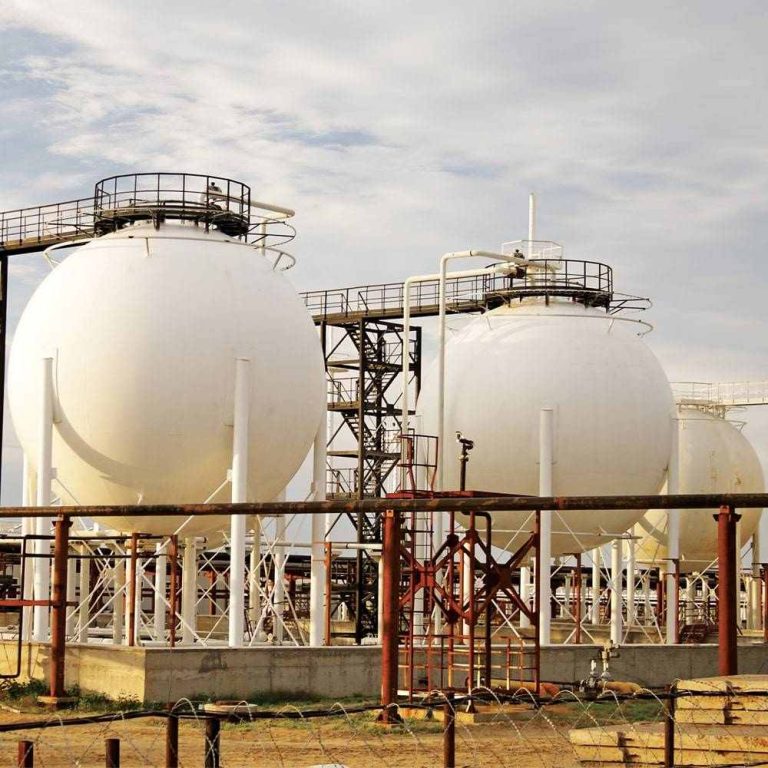

These Cross fittings find extensive application in industries such as oil and gas, petrochemical, chemical processing, power generation, and water treatment. Renowned for their straightforward installation, reliability, and ability to endure high pressure and temperature fluctuations, the Equal, Unequal, and Reducing Cross fittings from Tolu Fittings deliver efficient and durable solutions for intricate piping networks.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
