Hastelloy C22 Pipe Fittings Manufacturer and Supplier In Abuja, Nigeria

Tolu Fittings, a reputable manufacturer and supplier located in Abuja, Nigeria, is dedicated to delivering high-quality **Hastelloy C22 Pipe Fittings** that excel in extremely corrosive environments. Crafted from a premium nickel-chromium-molybdenum-tungsten alloy, these fittings are designed to endure both oxidizing and reducing conditions. Tolu Fittings prides itself on precision manufacturing, ensuring dimensional accuracy and durability, which makes their Hastelloy C22 Pipe Fittings perfect for critical applications in sectors like chemical processing, marine, and pollution control.

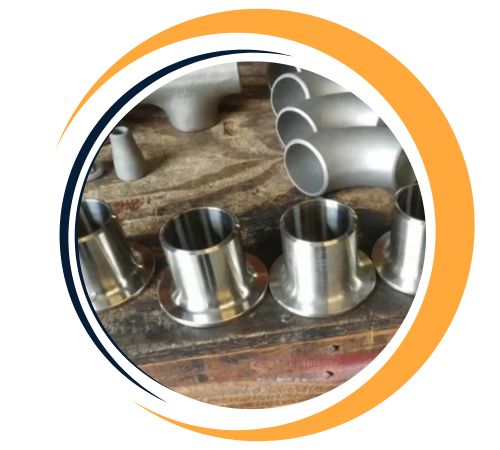

Hastelloy C22 Stub End In Nigeria, Hastelloy C22 Buttweld Elbow United kingdom, ASTM B366 Hastelloy Alloy C22 Pipe Fittings Abuja, Hastelloy C22 Reducing Tee Lagos, Hastelloy® C22 Pipe Fittings in Ibadan, ASME SB366 Hastelloy® Alloy C22 Pipe Cap Port Harcourt, Hastelloy C22 Buttweld Fittings Kano.

Hastelloy C22 Pipe Fittings Specification

Specification : ASTM B366 / ASME SB366

Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

ASME B16.9 : standard for – Factory-Made Wrought Buttwelding Fittings

ASME B16.25 : Buttwelding Ends

ASME B16.28 : standard for – Butt-Welded Short Radius Elbows & Returns Bends

MSS SP-43 : Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Size Range : ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)

Seamless Butt Weld Fitting Size : 1/2″ – 10″

Welded Butt Weld Fittings Size : 1/2″ – 48″

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type : Seamless / Welded / Fabricated

Hastelloy C22 Pipe Fittings mainly consist of nickel (approximately 56%), chromium (around 22%), molybdenum (about 13%), tungsten (nearly 3%), along with trace amounts of cobalt and iron. This sophisticated composition grants outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking. The alloy boasts a tensile strength of roughly 690 MPa, a yield strength of 310 MPa, and impressive elongation, ensuring robust mechanical integrity and stability even in extreme conditions.

Hastelloy C22 Pipe Fittings Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
Alloy C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

Hastelloy C22 Pipe Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Equivalent Grades for Hastelloy C22 Pipe Fittings

STANDARD	UNS	WERKSTOFF NR.	JIS	EN
Hastelloy C22	N06022	2.4602	NW 6022	NiCr21Mo14W

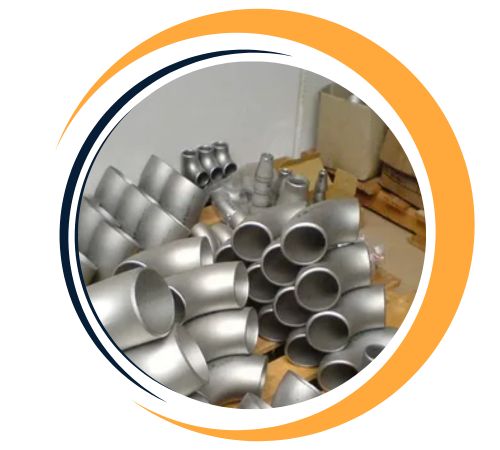

Hastelloy C22 45 deg. Elbow In Nigeria, Hastelloy C22 Reducer United kingdom, Hastelloy C22 90 deg Elbow Abuja, ANSI B16.9 Hastelloy C22 Buttweld Pipe Fittings Suppliers in Lagos, Hastelloy C22 Pipe Bend in Ibadan, Hastelloy® C22 Pipe Fittings Price List in Port Harcourt, Hastelloy C22 Pipe Elbow Suppliers Kano, Hastelloy C22 Seamless Pipe Fittings Nigeria.

Largest Hastelloy C22 Pipe Fittings Supplier in Abuja, Nigeria

Tolu Fittings is a leading supplier of Hastelloy C22 Pipe Fittings in Abuja, Nigeria. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Hastelloy C22 Pipe Fittings Dimensions

Nominal Pipe Size	All Fittings	All Fittings	All Fittings	Elbows/ Tees	180° Return Bends	180° Return Bends	180 Deg Return Bends	Reducers	Caps
NPS	O.D. at Bevel (1), (2)	I.D. at End (1), (3), (4)	Wall Thickness (3)	Centre-to-End Dimension A,B,C,M	Centre-to-Centre O	Back-to-Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 -0.03	0.03	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 -0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 -0.12	0.12	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.12	…	…	…	0.19	0.38
32 to 48	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.19	…	…	…	0.19	0.38

Why Choose Hastelloy C22 Pipe Fittings from Tolu Fittings?

Hastelloy C22 Pipe Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

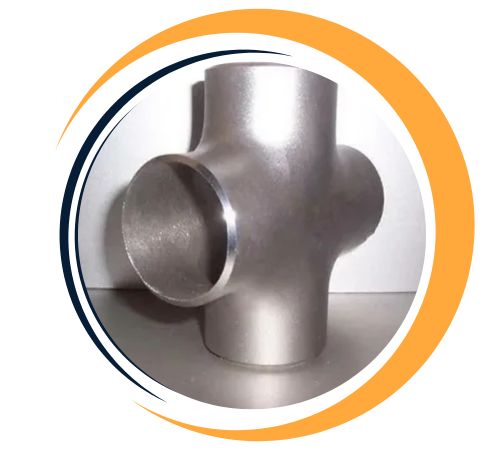

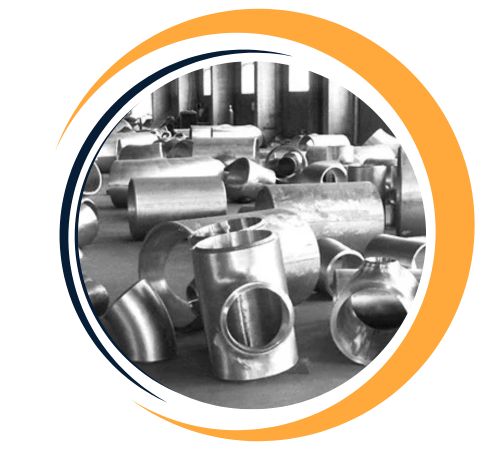

Hastelloy C22 Buttweld Cross Manufacturers Nigeria, Hastelloy C22 Welded Pipe Fittings Exporter in United kingdom, Hastelloy C22 Elbow Abuja, ASTM B366 Hastelloy C22 Tee Lagos, ASME SB366 Hastelloy C22 Unequal Tee Ibadan, Hastelloy® C22 Straight Tees Port Harcourt, ASME / ANSI B16.9 Hastelloy C22 Short Stub End Kano.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Hastelloy C22 pipe fittings offer exceptional resistance to corrosion, particularly in oxidizing and reducing environments, making them ideal for chemical processing. They withstand high temperatures and aggressive chemicals, including chlorides, acids, and oxidizing agents, enhancing durability in extreme conditions. Their superior weldability and machinability ensure ease of fabrication. With excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, they maintain structural integrity in demanding applications. These fittings are versatile, suitable for pharmaceutical, marine, and power industries, ensuring long-term reliability, reduced maintenance, and cost-efficiency in critical environments.

Types of Hastelloy C22 Pipe Fittings

Are Custom Sizes Available for Hastelloy C22 Pipe Fittings?

Yes, custom sizes for Hastelloy C22 Pipe Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.

Hastelloy C22 45 deg. Elbow In Nigeria, Hastelloy C22 Reducer United kingdom, Hastelloy C22 90 deg Elbow Abuja, ANSI B16.9 Hastelloy C22 Buttweld Pipe Fittings Suppliers in Lagos, Hastelloy C22 Pipe Bend in Ibadan, Hastelloy® C22 Pipe Fittings Price List in Port Harcourt, Hastelloy C22 Pipe Elbow Suppliers Kano, Hastelloy C22 Seamless Pipe Fittings Nigeria.

Application Industry of Hastelloy C22 Pipe Fittings

Hastelloy C22 Pipe Fittings find extensive use in industries dealing with harsh chemicals and corrosive substances, such as flue gas scrubbers, chemical reactors, heat exchangers, and marine engineering systems. They are particularly well-suited for equipment that comes into contact with oxidizing acids like nitric acid and reducing agents like hydrochloric acid. Thanks to their remarkable corrosion resistance, strength, and versatility, Hastelloy C22 Pipe Fittings are the go-to choice for applications where durability and reliability are essential.
