Hastelloy C276 Buttweld Fittings Manufacturer and Supplier In Abuja, Nigeria

Tolu Fittings, a reputable manufacturer and supplier based in Abuja, Nigeria, specializes in high-quality Stainless Steel 304 Buttweld Fittings that are built for dependable and long-lasting piping systems. These fittings are expertly crafted to ensure leak-proof connections while standing up to corrosion, oxidation, and scaling in a variety of industrial settings. Perfect for industries like chemical, petrochemical, food processing, and water treatment, these Stainless Steel 304 Buttweld Fittings blend strength, durability, and a sleek aesthetic. Produced in line with international standards, they guarantee safe and efficient fluid transport, making them a reliable option for high-pressure and moderate-temperature piping needs across commercial, industrial, and residential applications.

C-276 Hastelloy Welded Pipe Fittings Suppliers Nigeria, C276 Hastelloy® ANSI B16.9 Short & Long Radius Elbow United kingdom, C276 Hastelloy 45°/90°/180° Butt weld Elbow Abuja, Distributors of Hastelloy® Alloy C276 ASME SB366 Buttweld Reducer in Lagos, ASME B16.28 C-276 Hastelloy® Alloy Butt weld Reducing Tee Ibadan, C276 Hastelloy Unequal Cross Exporters Port Harcourt, C276 Hastelloy Welded Fittings In Kano.

Hastelloy C276 Buttweld Fittings Specification

Specifications	ASTM B366 / ASME SB366
Dimension Standard	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9	standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends.
ASME B16.28	standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range	½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size	1/2″ – 10″
Welded Butt Weld Fittings Size	1/2″ – 48″
Thickness	Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type	Seamless / Welded / Fabricated

Hastelloy C276 Buttweld Fittings Chemical Composition

Grade	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.01 max	15 – 17	1.0 max	0.08 max	4 – 7	0.04 max	0.03 max	2.5 max	14.5 – 16.5

Hastelloy C276 Buttweld Fittings Equivalent Grade

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	–	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Stainless Steel 304 Buttweld Fittings are mainly made up of 18% chromium and 8–10% nickel, with very low carbon content, which gives them outstanding resistance to corrosion and oxidation. This alloy boasts a tensile strength of around 520–750 MPa and a yield strength of 205–215 MPa, along with impressive ductility and toughness. These characteristics enable the fittings to endure moderate temperatures, high pressures, and mechanical stress without losing their shape. The material’s excellent formability, weldability, and resistance to both chemical and atmospheric corrosion make it ideal for a wide array of piping applications that demand durability and long-lasting performance.

Hastelloy C276 Buttweld Elbow Dimensions Standard

NOMINAL PIPE SIZE	ALL FITTINGS	ALL FITTINGS	ELBOWS AND TEES	180 DEG RETURN BENDS	180 DEG RETURN BENDS	180 DEG RETURN BENDS	REDUCERS	CAPS
NPS	O.D. at Bevel (1), (2)	I.D. at End (1), (3), (4)	Centre -to- End Dimension A, B, C, M	Centre-to- Centre O	Back-to- Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 -0.03	0.03	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 -0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 -0.12	0.12	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 -0.19	0.19	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 -0.19	0.19	0.12	…	…	…	0.19	0.38
32 to 48	0.25 -0.19	0.19	0.19	…	…	…	0.19	0.38

Nickel Alloy C-276 Buttweld Fittings Nigeria, Nickelvac® HC-276 Butt weld Pipe Fittings United kingdom, Hastelloy C-276 Equal Tee Wholesaler Abuja, ASTM B366 Hastelloy C276 Pipe Elbow Lagos, C276 Hastelloy® Buttweld Tee Dealer In Ibadan, Hastelloy C-276 Pipe Fittings Port Harcourt, Hastelloy® C276 Pipe Fittings Kano.

Largest Hastelloy C276 Buttweld Fittings Supplier in Abuja, Nigeria

Tolu Fittings is a leading supplier of Hastelloy C276 Buttweld Fittings in Abuja, Nigeria. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Hastelloy C276 Buttweld Fittings Dimensions Standard

All Fittings				90°and 45° Ells and Tees	Reducers and Lap Joint Stub	Caps	180° Returns			Angularity Tol
Nominal Pipe Plane Size (NPS)	Outside⁽¹⁾ Diameter at Bevel	Inside⁽¹⁾ Diameter at End	Wall⁽²⁾ Thickness	Centre-to- End Dimension A,B,C,M	Overall Length L	Overall Length E	Centre-to- Centre Dimension O	Back-to- Face Dimension K	Alignment at Ends U	Nominal Pipe SIze	Off Angle Q	Off Angle P
1/2 TO 2-1/2	+1/16	±1/32	Not less than 87-1/2% of Normal Thickness	±1/16	±1/16	±1/8	±1/4	±1/4	±1/32	12 to 4	1/32	1/16
	-1/32									5 to 8	1/16	1/8
3 TO 3-1/2	±1/16	±1/16		±1/16	±1/16	±1/8	±1/4	±1/4	±1/32	10 to 12	3/32	3/16
4	±1/16	±1/16		±1/16	±1/16	±1/8	±1/4	±1/4	±1/32	14 to 16	3/32	1/4
5 TO 8	+1/32	±1/16		±1/16	±1/16	±1/4	±1/4	±1/4	±1/32	18 to 24	1/8	3/8
	-1/16
10 TO 18	+1/16	±1/8		±3/32	±3/32	±1/4	±3/8	±1/4	±1/16	All dimensions are in inches
	-1/8
20 TO 24	+1/4	±3/32		±3/32	±3/32	±1/4	±3/8	±1/4	±1/16
	-3/32

Why Choose Hastelloy C276 Buttweld Fittings from Tolu Fittings?

Hastelloy C276 Buttweld Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Hastelloy Grade C-276 Butt weld Pipe Fittings Stockists In Nigeria, Alloy C276 Pipe Fittings Suppliers United kingdom, UNS N10276 Nickel Alloy Butt weld Seamless Pipe Fitting Abuja, Werkstoff No 2.4819 Hastelloy® Butt weld Eccentric Reducer Traders Lagos, Alloy C-276 MSS-SP-43 Buttweld Swage Nipple Ibadan, C276 Nickel Alloy Concentric Reducer Port Harcourt, MSS SP-79 Hastelloy C-276 End Pipe Cap Suppliers Kano, Hastelloy® Alloy JIS NW 0276 C276 Stub Ends Exporters Nigeria, Nicrofer® 5716 Pipe Fittings Abuja, Nigeria.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Hastelloy C276 Buttweld Fittings offer numerous advantages, making them ideal for challenging environments. Their superior resistance to corrosion, including pitting, stress-corrosion cracking, and oxidation, ensures long-lasting performance in aggressive chemical processes. These fittings maintain strength and integrity even in high-temperature and highly acidic or alkaline conditions. With exceptional weldability and formability, Hastelloy C276 allows for easy fabrication into various shapes. Its excellent durability and low maintenance needs make it cost-effective over time. These properties make it a preferred choice for industries like chemical processing, power generation, and marine applications.

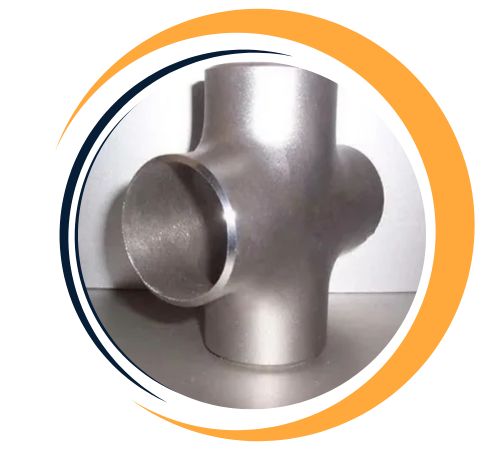

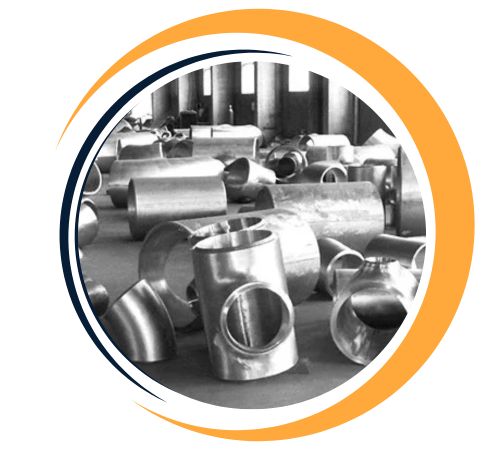

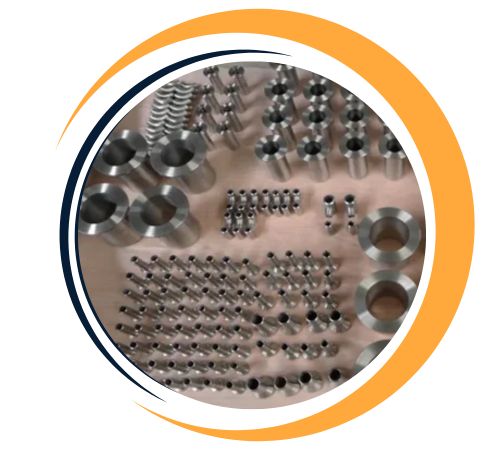

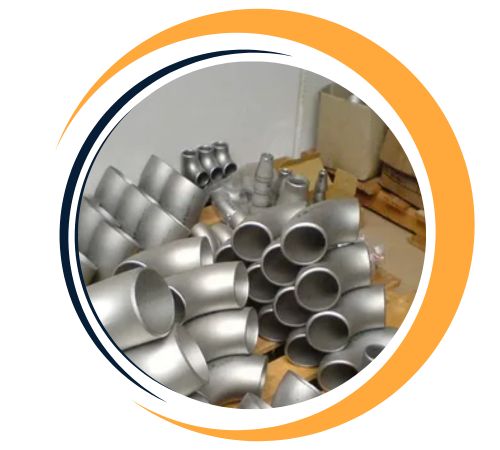

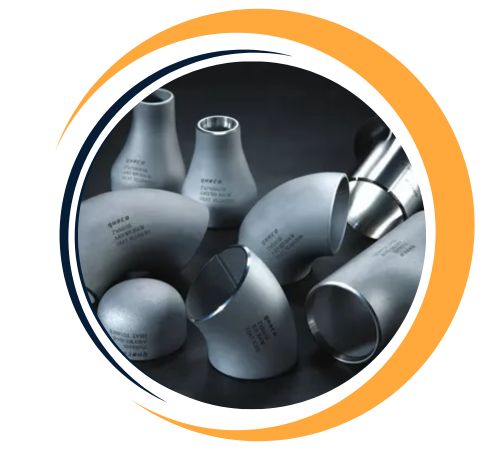

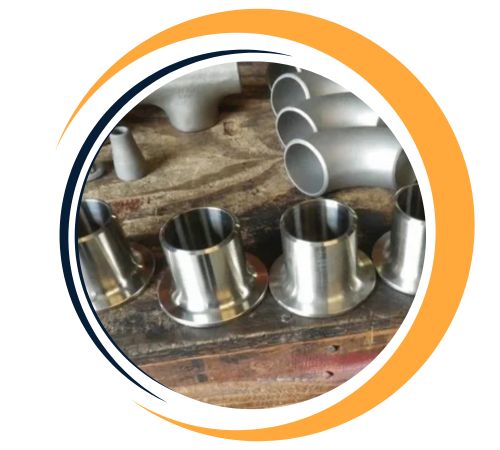

Types of Hastelloy C276 Buttweld Fittings

Are Custom Sizes Available for Hastelloy C276 Buttweld Fittings?

Yes, custom sizes for Hastelloy C276 Buttweld Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.

Werkstoff No 2.4819 Hastelloy® Butt weld Eccentric Reducer Traders Nigeria, Alloy C-276 MSS-SP-43 Buttweld Swage Nipple United kingdom, C276 Nickel Alloy Concentric Reducer Abuja, MSS SP-79 Hastelloy C-276 End Pipe Cap Suppliers Lagos, Hastelloy® Alloy JIS NW 0276 C276 Stub Ends Exporters Ibadan, Nicrofer® 5716 Pipe Fittings Port Harcourt, Hastelloy C276 Buttweld Fittings Kano.

Application Industry of Hastelloy C276 Buttweld Fittings

Tolu Fittings’ Stainless Steel 304 Buttweld Fittings are extensively utilized in industries that prioritize hygiene, corrosion resistance, and reliable fluid management. You’ll find them in chemical processing plants, petrochemical refineries, food and beverage production, water treatment systems, pharmaceutical pipelines, and HVAC setups. These fittings guarantee leak-proof connections and a long lifespan in environments with moderate temperatures and high pressures. Their corrosion resistance and robust design make them a go-to choice for various applications where reliability is key.
