Low Temperature A420 WPL6 Pipe Fittings Manufacturer and Supplier In Abuja, Nigeria

Tolu Fittings is a top-notch manufacturer and supplier based in Abuja, Nigeria, known for its high-quality **Low Temperature A420 WPL6 Pipe Fittings** that are built to perform reliably in sub-zero and cryogenic conditions. These fittings are crafted from fine-grain carbon steel, which provides exceptional impact toughness and strength even in low temperatures. Tolu Fittings prides itself on precision engineering, sturdy construction, and strict compliance with international standards, making their A420 WPL6 Pipe Fittings perfect for demanding low-temperature applications.

Low Temperature A420 WPL6 Pipe Fittings Price List in Abuja, Low Temperature A420 WPL6 Pipe Fittings Supplier in Ibadan, Low Temperature A420 WPL6 Pipe Fittings Exporter in Lagos, Low Temperature A420 WPL6 Pipe Fittings Supplier in Lagos, Low Temperature A420 WPL6 Pipe Fittings Exporter in Port Harcourt, Low Temperature A420 WPL6 Pipe Fittings Size Chart, Low Temperature A420 WPL6 Pipe Fittings Price in Kano, Low Temperature A420 WPL6 Pipe Fittings in Abuja, Low Temperature A420 WPL6 Pipe Fittings Supplier in Nigeria, Low Temperature A420 WPL6 Pipe Fittings Stockist in Ibadan, Low Temperature A420 WPL6 Pipe Fittings Exporter in Nigeria

Low Temperature A420 WPL6 Pipe Fittings Specification

Specification : ASTM A420 / ASME SA420

Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type : Seamless / Welded / Fabricated

The Low Temperature A420 WPL6 Pipe Fittings are primarily made up of carbon (around 0.3%), manganese (0.5–1.35%), phosphorus (≤0.035%), sulfur (≤0.04%), and silicon (0.15–0.3%). This specific composition ensures excellent weldability, toughness, and resistance to brittle fractures in cold conditions. They boast a tensile strength of approximately 415–585 MPa, a yield strength of 240 MPa, and impressive elongation, guaranteeing long-lasting durability even in extreme operating environments.

Low Temperature A420 WPL6 Pipe Fittings Chemical Compostion

Grade	C	Mn	Si	S	P	Cr	Mo
A420 WPL6	0.3	0.60-1.35	0.15-0.30	0.04	0.035	0.3	0.12

Low Temperature A420 WPL6 Pipe Fittings Mechanical Properties

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)
A420 WPL6	60-85[415-585]	35[240]

Low Temperature A420 WPL6 Pipe Fittings Exporter in Nigeria, Low Temperature A420 WPL6 Pipe Fittings Price List in Abuja, Low Temperature A420 WPL6 Pipe Fittings Supplier in Ibadan, Low Temperature A420 WPL6 Pipe Fittings Exporter in Lagos, Low Temperature A420 WPL6 Pipe Fittings Exporter in Port Harcourt, Low Temperature A420 WPL6 Pipe Fittings in Kano, Low Temperature A420 WPL6 Pipe Fittings Size Chart, Low Temperature A420 WPL6 Pipe Fittings Price in Kano, Low Temperature A420 WPL6 Pipe Fittings Weight Chart, Low Temperature A420 WPL6 Pipe Fittings Supplier in Nigeria, Low Temperature A420 WPL6 Pipe Fittings Stockist in Ibadan

Largest Low Temperature A420 WPL6 Pipe Fittings Supplier in Abuja, Nigeria

Tolu Fittings is a leading supplier of Low Temperature A420 WPL6 Pipe Fittings in Abuja, Nigeria. We offer an extensive range of Low Temperature A420 WPL6 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Low Temperature A420 WPL6 Pipe Fittings from Tolu Fittings?

Choose Low Temperature A420 WPL6 Pipe Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.

Low Temperature A420 WPL6 Pipe Fittings Exporter in Ibadan, Low Temperature A420 WPL6 Pipe Fittings Sizes in mm, Low Temperature A420 WPL6 Pipe Fittings Manufacturer in Lagos, Low Temperature A420 WPL6 Pipe Fittings Thickne Alloy Steel Weld Neck, Low Temperature A420 WPL6 Pipe Fittings Supplier in Abuja, Low Temperature A420 WPL6 Pipe Fittings Price List in Nigeria, Low Temperature A420 WPL6 Pipe Fittings Distributor in Port Harcourt, Low Temperature A420 WPL6 Pipe Fittings Supplier in Lagos, Low Temperature A420 WPL6 Pipe Fittings Distributor in Nigeria

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Low Temperature A420 WPL6 pipe fittings offer several advantages, including excellent toughness and strength at low temperatures, making them ideal for extreme environments. They provide outstanding resistance to brittle fracture, ensuring safety and reliability in cold conditions. These fittings also maintain high tensile strength and durability under stress, reducing the risk of failure in critical applications. Their corrosion resistance ensures a long service life, making them a cost-effective choice. Widely used in industries like oil and gas, petrochemical, and power generation, A420 WPL6 fittings guarantee dependable performance in harsh environments.

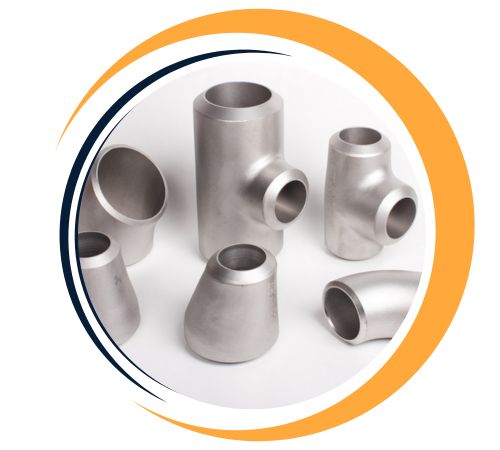

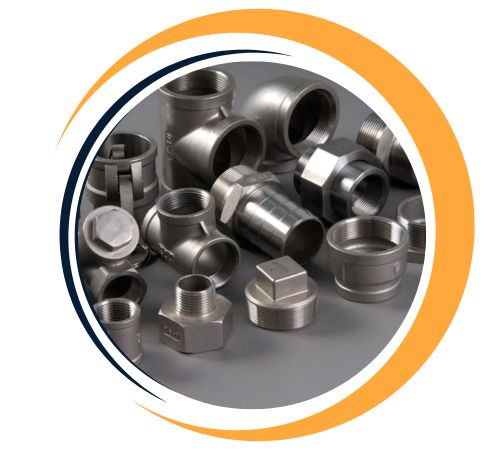

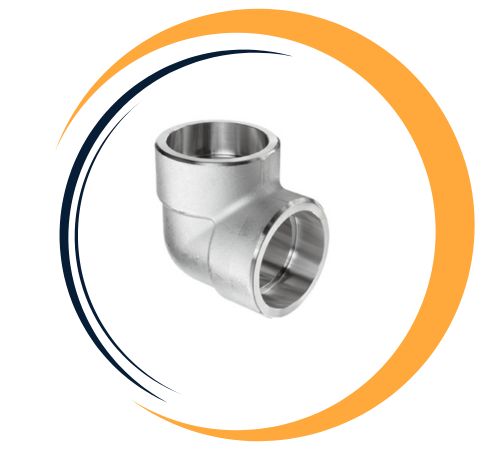

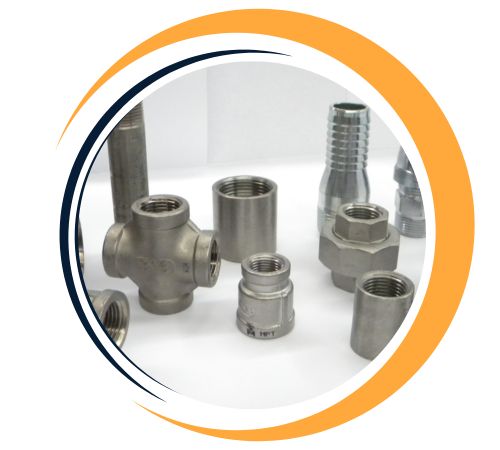

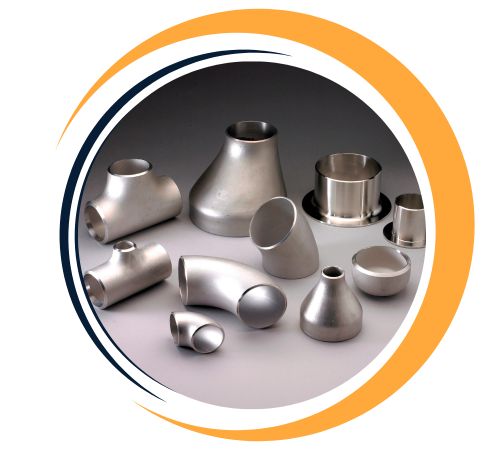

Types of Low Temperature A420 WPL6 Pipe Fittings

Are Custom Sizes Available for Low Temperature A420 WPL6 Pipe Fittings?

Yes, custom sizes for Low Temperature A420 WPL6 Pipe Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com

Low Temperature A420 WPL6 Pipe Fittings Equivalent Grades

Material	Fttg	Valves	Flg	Pipes	Bolts and Nuts
Low Temperature Carbon Steel Alloy Low-Temp	A420 Gr WPL6	A352 Gr LCB	A350 Gr LF2	A333 Gr 6	A320 Gr L7 A194 Gr 7
Low Temperature Carbon Steel Alloy Low-Temp	A420 Gr WPL3	A352 Gr LC3	A350 Gr LF3	A333 Gr 3	A320 Gr L7 A194 Gr 7

Low Temperature A420 WPL6 Pipe Fittings Dimensions

Nom. Pipe Size	ASTM A420 Carbon Steel 90° Elbows								ASTM A420 Carbon Steel 45° Elbows				ASTM A420 Carbon Steel 180° Return Long Radius
	Long Radius				Short Radius		3R		Long Radius		3R		STD	XS
	STD	XS	SCH. 160	XXS	STD	XS	STD	XS	STD	XS	STD	XS	STD	XS
½	.18	.25							.09	.19			.35
¾	.19	.25							.09	.19			.40	.65
1	.40	.50	.60	.75	.25				0.25	.31			.75	1.00
1¼	.60	.90	1.00	1.38	.4				0.38	.50			1.25	1.75
1½	.90	1.15	1.80	1.50	.56	.75			.40	.69			1.88	2.39
2	1.60	2.20	3.25	3.50	1.00	1.50	3.00	4.00	.81	1.19	1.5	2.1	3.23	4.40
2½	3.25	4.00	5.13	7.00	2.13	2.80	6.00	8.00	1.75	2.13	3.00	4.00	6.50	8.00
3	5.00	6.50	8.50	11.0	3.00	4.25	10.0	13.0	2.63	3.50	5.00	7.00	10.25	13.00
3½	6.75	8.35		16.0	4.50	6.00	13.0	18.0	3.50	4.50	7.00	9.00	13.00	16.75
4	9.00	13.5	18.0	20.0	6.25	8.50	18.0	25.0	4.50	6.10	9.00	13.0	18.5	25.0
5	15.0	22.0	32.0	36.0	9.60	14.0	29.0	43.0	7.50	10.7	15.0	22.0	30.0	44.0
6	24.5	35.0	57.0	65.0	18.0	23.0	45.0	70.0	12.0	17.5	23.0	35.0	50.0	70.0
8	50.0	71.0	120	118	34.0	47.5	90.0	140	23.0	35.0	45.0	70.0	95.0	142
10	88.0	107	260		58.0	70.0	159	218	43.0	53.0	80.0	109	117	215
12	125	160	450		80.0	104	233	310	62.0	84.0	117	155	230	320
14	160	205	572		105	140	298	400	80.0	100	149	200	325	400
16	206	276			132	174	390	520	100	135	195	260	412	550
18	260	340			167	219	495	660	126	167	248	330	510	690
20	320	420			210	275	610	810	160	206	305	405	640	830
22	394	520					735	980	197	260	368	490	787	1040
24	460	600			298	392	875	1170	238	300	438	585	890	1200
26	550	729					1030	1370	275	365	515	685
30	734	975					1370	1830	367	488	685	915
36	1062	1412					1970	2630	531	706	985	1315

Low Temperature A420 WPL6 Pipe Fittings Supplier in Abuja, Low Temperature A420 WPL6 Pipe Fittings Weight Chart, Low Temperature A420 WPL6 Pipe Fittings Exporter in Ibadan, Low Temperature A420 WPL6 Pipe Fittings Manufacturer in Lagos, Low Temperature A420 WPL6 Pipe Fittings Price List in Nigeria, Low Temperature A420 WPL6 Pipe Fittings Sizes in mm, Low Temperature A420 WPL6 Pipe Fittings Distributor in Port Harcourt, Low Temperature A420 WPL6 Pipe Fittings in Kano, Low Temperature A420 WPL6 Pipe Fittings Distributor in Nigeria

Application Industry of Low Temperature A420 WPL6 Pipe Fittings

These fittings are widely utilized across various industries, including oil and gas, petrochemical, LNG processing, and refrigeration systems. They are particularly suited for cryogenic piping, pressure vessels, and fluid transport systems that function in freezing or sub-zero settings. Their ability to maintain structural integrity and leak-proof performance under low-temperature stress makes them a reliable choice for critical applications around the globe.
