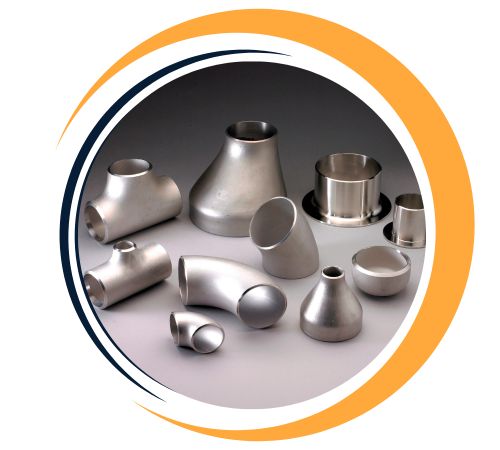

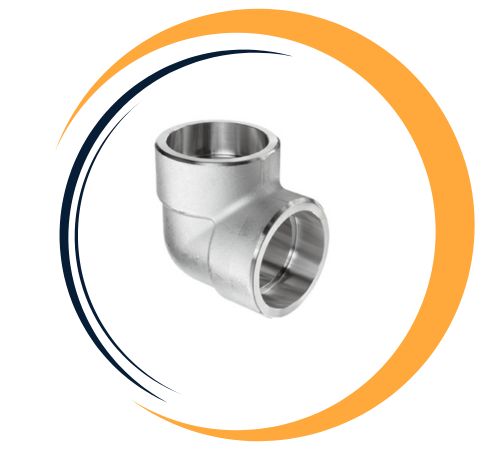

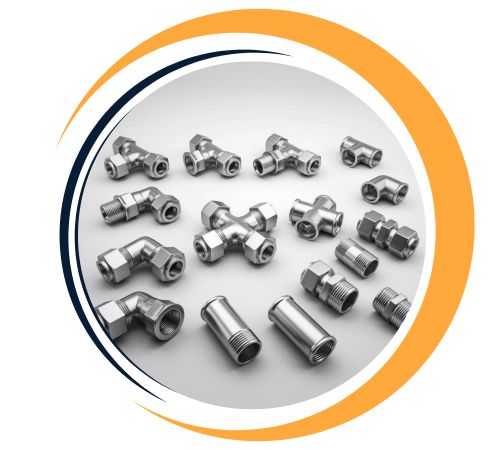

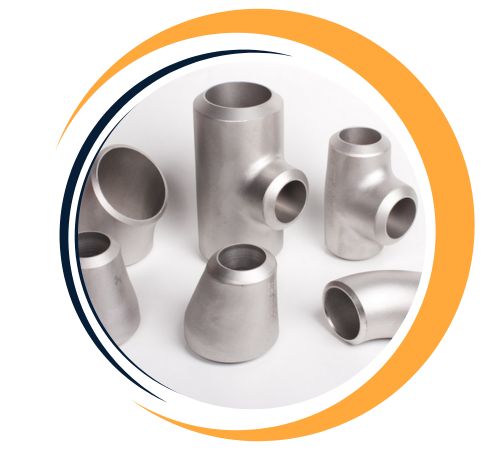

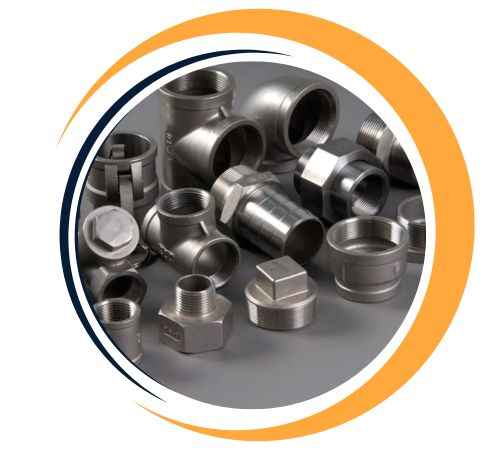

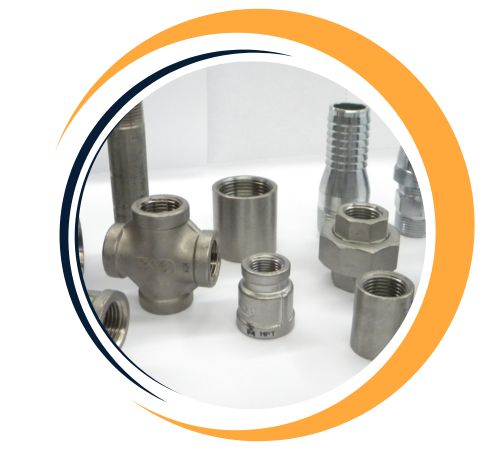

Tolu Fittings, located in Abuja, Nigeria, has earned a solid reputation as a reliable manufacturer and supplier of **Monel 400 Forged Fittings**. They’re known for producing high-quality, durable products that adhere to international standards. These fittings are crafted for top-notch performance in tough industrial settings, boasting impressive resistance to corrosion, acids, and alkalis. With a focus on precision engineering and strict quality control, Tolu Fittings offers a diverse selection of Monel 400 Forged Fittings, including elbows, tees, unions, couplings, and reducers. This ensures a long service life and dependable operation in marine, chemical, and offshore applications.
Specification : ASTM B564 / ASME SB564
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS.
Socket-weld End – 3000 / 6000/ 9000 LBS.
Monel 400 Forged Fittings are made up of about 63% nickel and 30-34% copper, along with trace amounts of iron, manganese, and silicon. This unique blend gives them outstanding corrosion resistance and toughness across a broad temperature range. The material showcases a tensile strength of roughly 550 MPa, a yield strength of 240 MPa, and excellent elongation properties. These fittings maintain remarkable mechanical stability, high thermal conductivity, and robust resistance to seawater and steam, making them perfect for challenging chemical and marine environments.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
Tolu Fittings is a leading supplier of Monel 400 Forged Fittings in Abuja, Nigeria. We offer an extensive range of Monel 400 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Choose Monel 400 Forged Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Monel 400 Forged Fittings offer several advantages, including outstanding corrosion resistance, especially in seawater, acidic, and alkaline environments. They are highly durable, with excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, ensuring reliable performance in harsh conditions. These fittings maintain their strength at elevated temperatures, making them ideal for high-pressure and high-temperature applications. Additionally, Monel 400 offers superior weldability and machinability, allowing for easy customization and installation. With their long-lasting durability and high performance, Monel 400 Forged Fittings are the preferred choice for critical industrial applications.
Yes, custom sizes for Monel 400 Forged Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com
Monel 400 Forged Fittings find their place in various industries that require strength, corrosion resistance, and durability. They’re particularly suited for chemical processing plants, marine and offshore engineering, oil and gas refineries, and hydrocarbon processing systems. Their ability to resist seawater corrosion makes them ideal for shipbuilding and desalination plants. Additionally, they’re utilized in heat exchangers, pumps, valves, and piping systems that handle acids and alkalis. Monel 400 Forged Fittings deliver reliable performance in extreme conditions, ensuring safe and efficient flow operations in critical industrial applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
