Tolu Fittings is a well-respected manufacturer and supplier located in Abuja, Nigeria, specializing in top-notch **Monel K500 Pipe Fittings** tailored for tough industrial applications. Renowned for their precision engineering and reliability, Tolu Fittings provides fittings that boast exceptional corrosion resistance, strength, and durability, even in the most challenging marine and chemical environments. With a strong commitment to excellence and strict adherence to international standards, the company caters to a variety of industries, including oil & gas, petrochemical, power generation, and marine engineering, offering Monel K500 fittings that guarantee outstanding performance and a long service life, even under extreme operating conditions.
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size Seamless 1/2″ – 10″ , Welded 1/2″ – 48″
Type (Seamless & 100% X-Ray Welded, Fabricated)
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade Monel K500 Pipe Fittings UNS (N05500), DIN (2.4375)
**Monel K500 Pipe Fittings** are primarily made of nickel and copper, with small amounts of aluminum and titanium added to boost strength and hardness through age-hardening. These fittings showcase high tensile strength, remarkable corrosion and oxidation resistance, and excellent toughness across a wide temperature range. They maintain impressive mechanical stability in seawater, chemical, and acidic environments. Typical mechanical properties include high yield and tensile strength, good fatigue resistance, and low magnetic permeability, making them perfect for critical industrial operations.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 115000 , MPa – 790 | Psi – 160000 , MPa – 1100 | 20 % |
Tolu Fittings is a leading supplier of Monel K500 pipe fittings in Abuja, Nigeria. We offer an extensive range of Monel K500 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 pipe fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

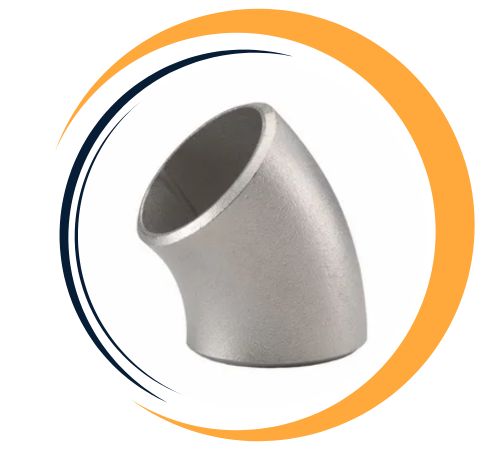

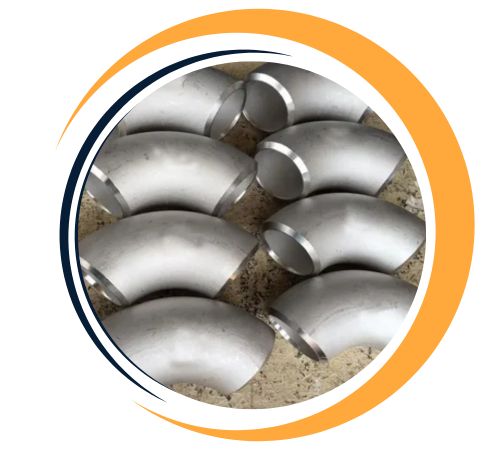

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Monel K500 Pipe Fittings offer exceptional advantages, including superior corrosion resistance, making them ideal for marine and chemical industries. They combine high strength and toughness with excellent resistance to stress corrosion cracking and erosion in harsh environments. Their non-magnetic properties and outstanding thermal conductivity make them versatile for diverse applications. Monel K500 fittings maintain mechanical properties even at sub-zero and elevated temperatures, ensuring durability and reliability. Additionally, their ease of machining and fabrication allows for custom designs, meeting various industrial needs with long-term performance and low maintenance requirements.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Monel K500 pipe fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
**Monel K500 Pipe Fittings** find extensive use in industries that demand high strength and corrosion resistance, such as offshore drilling, marine engineering, and chemical processing. They are particularly suited for pump shafts, valves, and piping systems that come into contact with seawater and corrosive solutions. In the oil and gas sector, they are utilized in sour gas service, heat exchangers, and pressure vessels. The aerospace and defense industries also rely on these fittings for their durability and non-magnetic properties. Their ability to perform under extreme conditions makes them a top choice for challenging engineering applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
