SMO 254 Buttweld Fittings Manufacturer and Supplier In Abuja, Nigeria

Tolu Fittings, a reputable manufacturer and supplier located in Abuja, Nigeria, is known for its top-notch **SMO 254 Buttweld Fittings** that boast impressive resistance to corrosion and remarkable mechanical strength. These fittings are specifically designed to thrive in tough and demanding environments, crafted from high-quality materials and cutting-edge technology to guarantee durability, precision, and reliability. Tolu Fittings’ SMO 254 Buttweld Fittings have earned a solid reputation for their exceptional performance in chloride-rich and oxidizing conditions, making them perfect for use in the chemical, marine, and desalination sectors.

SMO 254 Pipe Elbow In Nigeria, SMO 254 Pipe Fittings United kingdom, SMO 254 Buttweld Elbow Abuja, SMO S31254 Seamless Fittings Exporter Lagos, SMO 254 Stainless Steel 1.4547 Butt Weld Pipe Fittings in Ibadan, SMO 254 Two Joint Pipe Fittings Port Harcourt, 254 SMO Welded Fittings Manufacturers in Kano, SMO 254 Buttweld Fittings In Nigeria, ASTM A240 WP3 254 SMO Buttweld Fittings Supplier in Abuja, Nigeria.

SMO 254 Buttweld Fittings Specification

Specifications : ASTM A403 / ASME SA403

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 3/4″ – 12″

Type : Seamless / Welded / Fabricated

Schedule : Sch 5 TO Sch XXS.

Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

The composition of SMO 254 Buttweld Fittings includes about 20% chromium, 18% nickel, 6% molybdenum, along with trace amounts of nitrogen and copper. This high-alloy austenitic stainless steel delivers a tensile strength of around 680 MPa and a yield strength of roughly 300 MPa, while also offering excellent toughness and ductility. The unique makeup of this alloy provides outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking, even in challenging environments like seawater and acidic conditions.

SMO 254 Buttweld Fittings Chemical Composition

Grade	%	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	Min.	17.5	19.5	6	0.5	0.18
SMO 254	Max.	18.5	20.5	6.5	1	0.22	0.02	1	0.8	0.03	0.01

SMO 254 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
SMO 254	8.0 g/cm3	1320-1390 ℃	650	300	35 %

ASTM A240 SMO 254 Buttweld Fittings Cross in Nigeria, SMO 1.4547 Buttweld Pipe Fittings United kingdom, SMO 254 Stainless Steel 254 Butt Weld Pipe Cap Abuja, SMO 254 Eccentric Reducer Lagos, SMO 254 Equal Tee Ibadan, 254 SMO Reducer in Port Harcourt, SMO 254 SR Elbow Exporter in Kano,

Largest SMO 254 Buttweld Fittings Supplier in Abuja, Nigeria

Tolu Fittings is a leading supplier of SMO 254 Buttweld Fittings in Abuja, Nigeria. We offer an extensive range of SMO 254 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

SMO 254 Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	SIS	GOST	AFNOR	EN
SMO 254	1.4547	S31254	–	2378	–	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7

Why Choose SMO 254 Buttweld Fittings from Tolu Fittings?

SMO 254 Buttweld Fittingsfrom Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31254 Stub End Uk, ANSI B16.5 SMO 254 Pipe Fittings United kingdom, SMO 254 Pipe Bend Stockist in Abuja, SMO 254 Pipe Nipple Manufacturer & Exporter in Lagos, SMO 1.4547 Butt Weld Pipe Fittings in Ibadan, SMO 254 Pipe Two Joint Pipe Fittings Port Harcourt, 254 SMO Pipe Welded Fittings Manufacturers in Kano, SMO 254 Stainless Steel 254 Pipe Butt weld Fittings In Nigeria, ASTM A240 SMO 254 Pipe Butt Weld Fittings Supplier in Abuja, Nigeria.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

SMO 254 Buttweld Fittings provide excellent resistance to pitting, crack corrosion, and stress corrosion cracking, making them ideal for harsh environments such as chemical, marine and offshore applications. These materials also provide excellent weldability and formability, resulting in reliable and durable connections. SMO 254’s ability to withstand extreme temperature and pressure fluctuations adds great versatility under challenging industrial conditions. Its overall durability and reliability reduce maintenance and replacement costs.

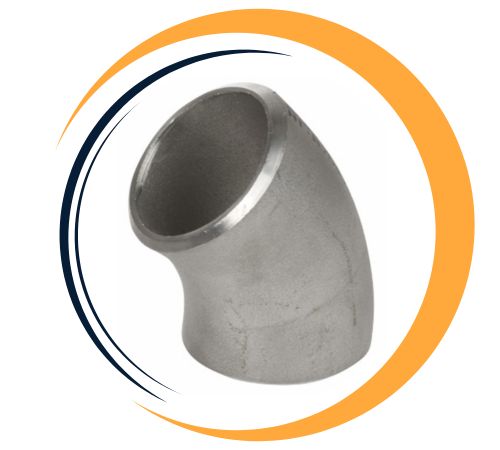

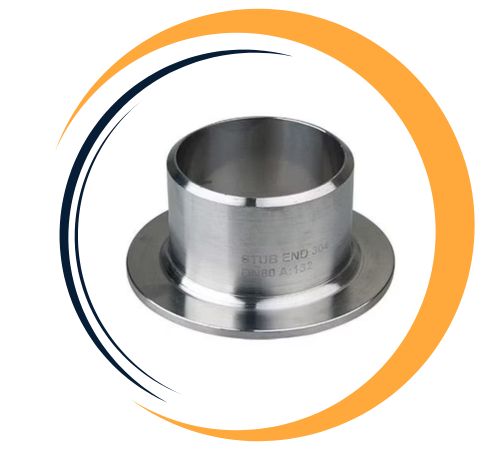

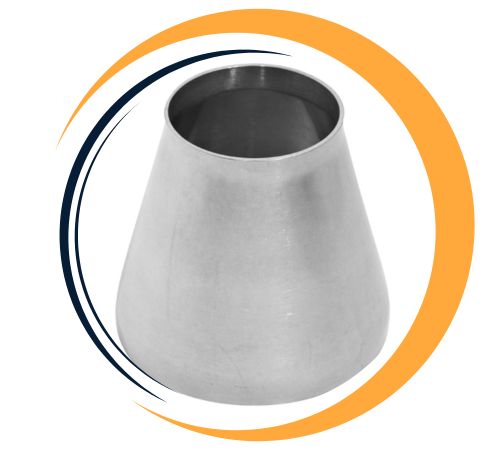

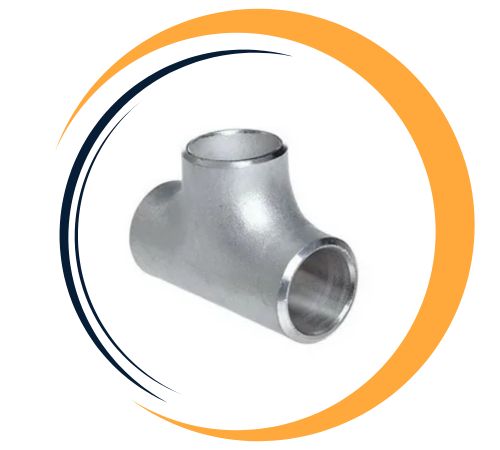

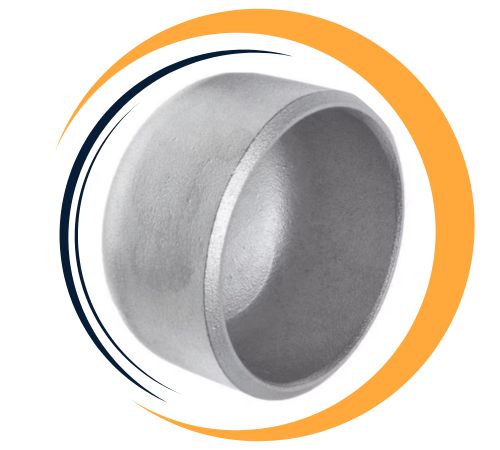

Types of SMO 254 Buttweld Fittings

SMO 254 Buttweld Fittings Dimensions Chart

Nom. Pipe Size	90° Elbows			45° Elbows		180° Return Bends				Tees		Lap Joint Stub Ends			Caps
	Long Rad.	Short Rad.	3R	Long Rad.	3R	Long Rad.		Short Rad.		C	M	F	G	R	E
	A	A	A	B	B	O	K	O	K	C	M	F	G	R	E
½	1.50	–	–	0.62	–	3.00	1.88	–	–	1.00	1.00	3.00	1.38	0.12	1.00
¾	1.50	–	–	0.75	–	3.00	2.00	–	–	1.12	1.12	3.00	1.69	0.12	1.00
1	1.50	1.00	–	0.88	–	3.00	2.19	2.00	1.62	1.50	1.50	4.00	2.00	0.12	1.50
1¼	1.88	1.25	–	1.00	–	3.75	2.75	2.50	2.06	1.88	1.88	4.00	2.50	0.19	1.50
1½	2.25	1.50	–	1.12	–	4.50	3.25	3.00	2.44	2.25	2.25	4.00	2.88	0.25	1.50
2	3.00	2.00	6.00	1.38	2.50	6.00	4.19	4.00	3.19	2.50	2.50	6.00	3.62	0.31	1.50
2½	3.75	2.50	7.50	1.75	3.12	7.50	5.19	5.00	3.94	3.00	3.00	6.00	4.12	0.31	1.50
3	4.50	3.00	9.00	2.00	3.75	9.00	6.25	6.00	4.75	3.38	3.38	6.00	5.00	0.38	2.00
3½	5.25	3.50	10.50	2.25	–	10.50	7.25	7.00	5.50	3.75	3.75	6.00	5.50	0.38	2.50
4	6.00	4.00	12.00	2.50	5.00	12.00	8.25	8.00	6.25	4.12	4.12	6.00	6.19	0.44	2.50
5	7.50	5.00	15.00	3.12	–	15.00	10.31	10.00	7.75	4.88	4.88	8.00	7.31	0.44	3.00
6	9.00	6.00	18.00	3.75	7.44	18.00	12.31	12.00	9.31	5.62	5.62	8.00	8.50	0.50	3.50
8	12.00	8.00	24.00	5.00	9.94	24.00	16.31	16.00	12.31	7.00	7.00	8.00	10.62	0.50	4.00
10	15.00	10.00	30.00	6.25	12.44	30.00	20.38	20.00	15.38	8.50	8.50	10.00	12.75	0.50	5.00
12	18.00	12.00	36.00	7.50	14.88	36.00	24.38	24.00	18.38	10.00	10.00	10.00	15.00	0.50	6.00
14	21.00	14.00	42.00	8.75	17.38	42.00	28.00	28.00	21.00	11.00	11.00	12.00	16.25	0.50	6.50
16	24.00	16.00	48.00	10.00	19.88	48.00	32.00	32.00	24.00	12.00	12.00	12.00	18.50	0.50	7.00
18	27.00	18.00	54.00	11.25	22.38	54.00	36.00	36.00	27.00	13.50	13.50	12.00	21.00	0.5	8.00
20	30.00	20.00	60.00	12.50	24.88	60.00	40.00	40.00	30.00	15.00	15.00	12.00	23.00	0.50	9.00
22	33.00	22.00	66.00	13.50	27.31	66.00	44.00	44.00	33.00	16.50	16.50	12.00	25.25	0.50	10.00
24	36.00	24.00	72.00	15.00	29.81	72.00	48.00	48.00	36.00	17.00	17.00	12.00	27.25	0.50	10.50
26	39.00	–	78.00	16.00	32.31	–	–	–	–	19.50	19.50	–	–	–	10.50
28	42.00	–	84.00	17.25	34.75	–	–	–	–	20.50	20.50	–	–	–	10.50
30	45.00	–	90.00	18.50	37.25	–	–	–	–	22.00	22.00	–	–	–	10.50
32	48.00	–	–	19.75	–	–	–	–	–	23.50	23.50	–	–	–	10.50
34	51.00	–	102.00	21.00	42.25	–	–	–	–	25.00	25.00	–	–	–	10.50
36	54.00	–	108.00	22.25	44.69	–	–	–	–	26.50	26.50	–	–	–	10.50
38	57.00	–	114.00	23.62	47.25	–	–	–	–	28.00	28.00	–	–	–	12.00
40	60.00	–	120.00	24.88	49.75	–	–	–	–	29.50	29.50	–	–	–	12.00
42	63.00	–	126.00	26.00	52.19	–	–	–	–	30.00	28.00	–	–	–	12.00
44	66.00	–	132.00	27.38	54.69	–	–	–	–	32.00	30.00	–	–	–	13.50
46	69.00	–	138.00	28.62	57.19	–	–	–	–	33.50	31.50	–	–	–	13.50
48	72.00	–	144.00	29.88	59.69	–	–	–	–	35.00	33.00	–	–	–	13.50

All dimensions given in inches for common diameters and wall thicknesses. Dimensions in accordance with ASME B16.9. Other sizes, schedules and wall thicknesses also available.

Are Custom Sizes Available for SMO 254 Buttweld Fittings?

Yes, custom sizes for SMO 254 Buttweld Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.

ASTM A403 SMO 254 Butt Weld Cross in Nigeria, SMO 1.4547 Buttweld Pipe Fittings United kingdom, SMO 254 Butt Weld Pipe Cap Abuja, SMO 254 Eccentric Reducer Lagos, Stainless Steel SMO 254 Equal Tee Ibadan, 254 SMO Reducer in Port Harcourt, SMO 254 SR Elbow Exporter in Kano,

Application Industry of SMO 254 Buttweld Fittings

SMO 254 Buttweld Fittings find extensive application in industries that deal with highly corrosive substances, such as seawater systems, pulp and paper processing, chemical and petrochemical plants, and offshore oil and gas operations. They are particularly well-suited for heat exchangers, condensers, pressure vessels, and piping systems that are exposed to harsh chemicals or saline environments. Thanks to their excellent weldability, corrosion resistance, and long service life, SMO 254 Buttweld Fittings are a dependable choice for critical industrial applications.
