Tolu Fittings, a top-notch manufacturer and supplier located in Abuja, Nigeria, specializes in high-quality **Stainless Steel 17-4 PH Pipe Fittings** that are built for strength, durability, and resistance to corrosion. These fittings are crafted using cutting-edge manufacturing techniques and top-grade raw materials, ensuring they perform exceptionally well even in tough conditions. Renowned for their impressive mechanical properties and ease of fabrication, Tolu Fittings’ Stainless Steel 17-4 PH Pipe Fittings are perfect for industries like aerospace, petrochemical, marine, and power generation, where strength and toughness are essential.
| Specification | ASTM A403 / ASME SA403 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
These fittings are primarily made of iron, with 15–17.5% chromium, 3–5% nickel, and 3–5% copper, along with a touch of niobium. This precipitation-hardening alloy boasts a tensile strength of around 1310 MPa and a yield strength of about 1170 MPa after heat treatment. It offers remarkable corrosion resistance, high hardness, and excellent mechanical stability across a broad temperature range.
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 | 15.00-17.50 | 3.00-5.00 | Bal | 1.0 max | 3.0-5.0 | 0.40 max | 0.03 max | 1.0 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |

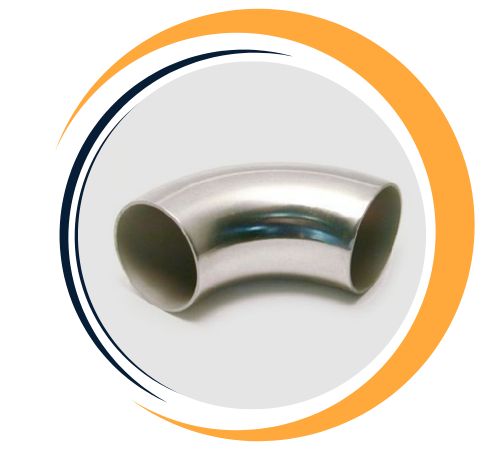

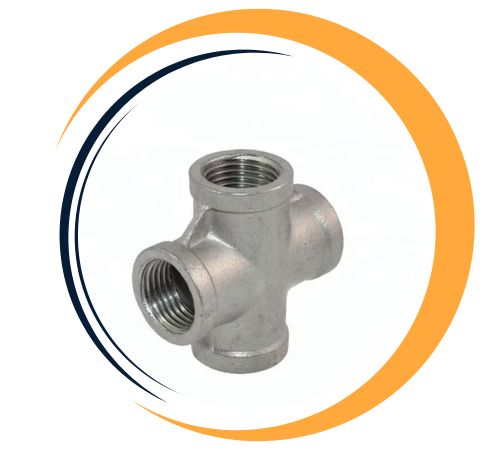

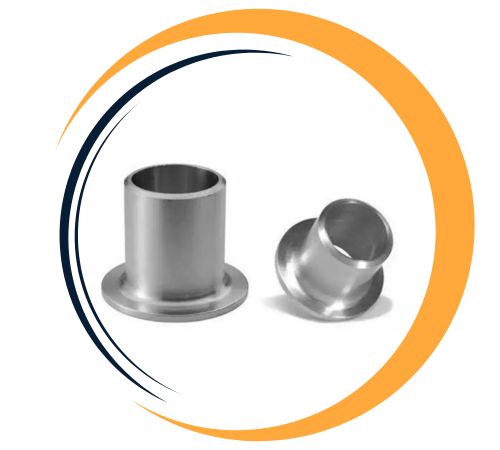

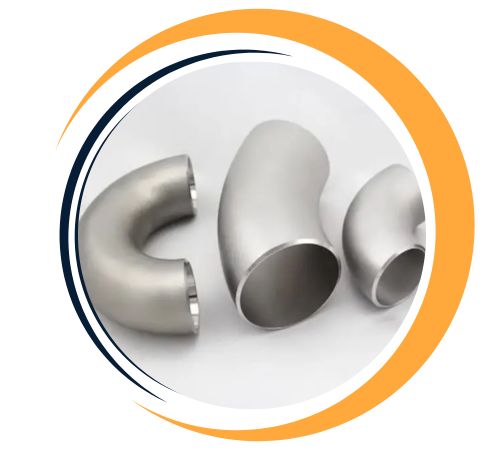

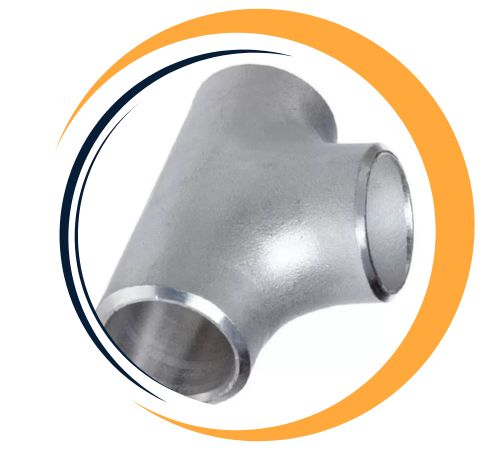

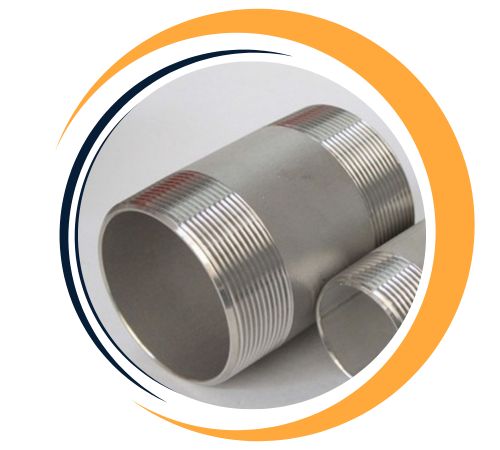

Tolu Fittings one of the largest suppliers of Stainless Steel 17-4 PH Pipe Fittings in Abuja, Nigeria. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 17-4 PH is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 17-4 PH Pipe Fittings in the Nigeria.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 17-4 PH Pipe Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless Steel 17-4 PH Pipe Fittings offer numerous advantages, including excellent corrosion resistance, even in harsh environments such as marine and chemical industries. Their high strength-to-weight ratio and superior mechanical properties ensure durability and reliability under high-pressure and high-temperature conditions. These fittings are easy to machine and weld, providing versatility in various applications. The alloy’s precipitation-hardening capability allows for adjustable strength levels through heat treatment, enhancing its adaptability. Additionally, they exhibit minimal distortion during heat processing, making them an ideal choice for precision-demanding applications like aerospace and petrochemical industries.
Yes, custom sizes are available for Stainless Steel 17-4 PH Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@tolufittings.com.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
Stainless Steel 17-4 PH Pipe Fittings are commonly used in situations that demand superior strength and resistance to corrosion and oxidation. They’re ideal for chemical processing systems, pressure vessels, marine environments, and aircraft components. Additionally, these fittings are utilized in paper mills, offshore structures, and the nuclear industry. Their blend of high mechanical strength, outstanding wear resistance, and corrosion protection makes them a dependable choice for challenging industrial and structural applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
