Tolu Fittings is a top-notch manufacturer and supplier based in Abuja, Nigeria, specializing in high-quality Stainless Steel 309 Pipe Fittings. These fittings are crafted to excel in high-temperature and corrosive settings, ensuring reliable performance. With a focus on precision and rigorous quality control, Tolu Fittings delivers products that boast exceptional strength, oxidation resistance, and durability. Perfect for applications like heat exchangers, furnaces, and process equipment, these Stainless Steel 309 fittings maintain their structural integrity even in extreme heat. Tolu Fittings is committed to meeting international standards, providing long-lasting, leak-proof, and high-performance pipe connections for industries such as petrochemical, power generation, refineries, and chemical processing.
| Specifications | : | ASTM A403 ASME SA 182 |
| Tube Size | : | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE etc. |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
Stainless Steel 309 Pipe Fittings are made up of 22–24% chromium and 12–15% nickel, with a low carbon content that minimizes carbide precipitation during welding. This well-balanced composition grants them outstanding resistance to oxidation and thermal scaling, even at temperatures reaching 1000°C. On the mechanical side, 309 stainless steel boasts a tensile strength of about 620 MPa and a yield strength of 310 MPa, ensuring remarkable toughness and creep resistance. These characteristics enable the fittings to retain their strength, ductility, and dimensional accuracy, even when faced with continuous thermal and mechanical stress in challenging environments.
| Grade | C | Mn | Si | P | S | Cr | Ni | FE |
| SS 309 | 0.20 max. | 2.00 max. | 0.75 max. | 0.045 max. | 0.03 max. | 22.0 – 24.0 | 12.0 – 15.0 | Balance |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 309 | 7.8 g/cm3 | 1200 ℃ | 586 MPa | 310 MPa | 40 % | 202 |

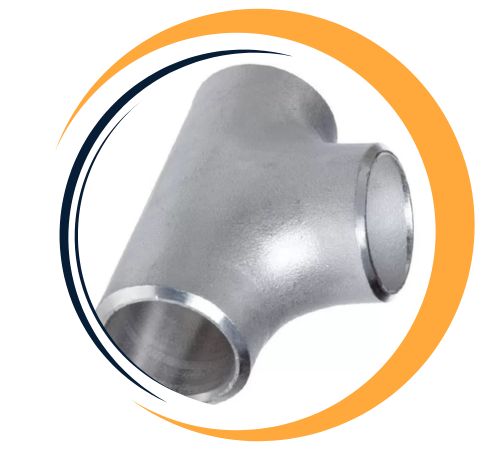

Tolu Fittings one of the largest suppliers of Stainless Steel 309 Pipe Fittings in Abuja, Nigeria. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 309 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 309 Pipe Fittings in the Nigeria.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 309 Pipe Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
| SS 309 | S30900 | 1.4828 | – | – | SUS 309 | – | – |
Stainless Steel 309 Pipe Fittings offer superior heat resistance, making them ideal for high-temperature applications up to 1000°C. Their excellent oxidation and corrosion resistance ensure durability in harsh environments, including those exposed to acids and high humidity. These fittings exhibit high tensile and yield strength, ensuring reliability in demanding industrial settings. Easy to fabricate and weld, they maintain structural integrity during thermal cycling. With good toughness and creep resistance, Stainless Steel 309 fittings are perfect for applications in furnaces, heat exchangers, and petrochemical industries, delivering long-lasting performance and versatility.

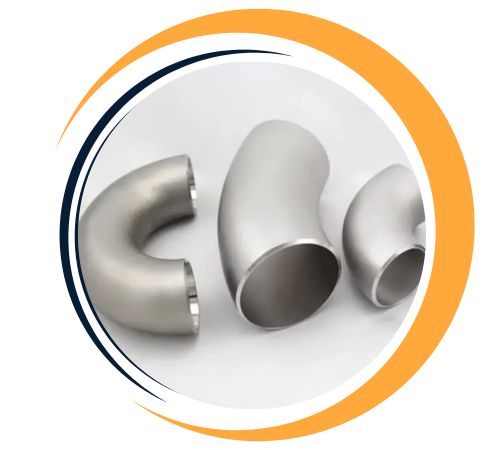

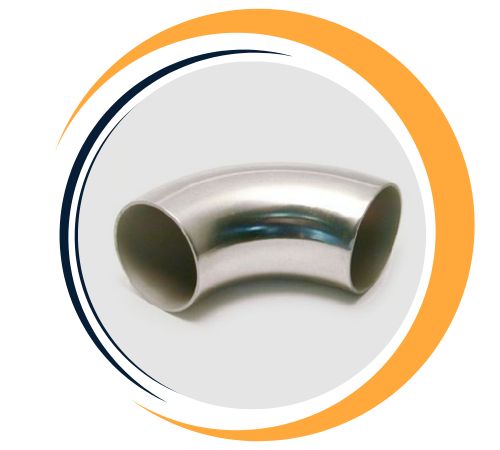

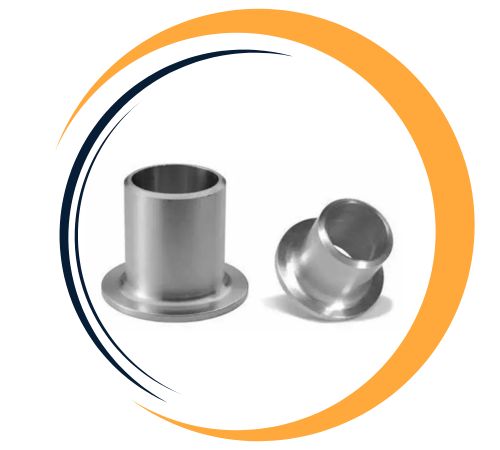

| All Fittings | 90°and 45° Ells and Tees | Reducers and Lap Joint Stub | Caps | 180° Returns | Angularity Tol | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Plane Size (NPS) | Outside(1) Diameter at Bevel | Inside(1) Diameter at End | Wall(2) Thickness | Centre-to- End Dimension A,B,C,M | Overall Length L | Overall Length E | Centre-to- Centre Dimension O | Back-to- Face Dimension K | Alignment at Ends U | Nominal Pipe SIze | Off Angle Q | Off Angle P |
| 1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
| -1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
| 3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
| 4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
| 5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
| -1/16 | ||||||||||||
| 10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
| -1/8 | ||||||||||||
| 20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
| -3/32 | ||||||||||||
Yes, custom sizes are available for Stainless Steel 309 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@tolufittings.com.
Tolu Fittings’ Stainless Steel 309 Pipe Fittings are widely utilized in high-temperature service applications, including heat treatment equipment, furnace components, boiler piping, and exhaust systems. Their impressive oxidation resistance and thermal stability make them a great fit for power plants, chemical industries, refineries, and incineration systems. These fittings are also perfect for pressure vessels, heat exchangers, and petrochemical processing lines. Thanks to their durability and corrosion resistance, they promise long-lasting, maintenance-free performance in demanding conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
