Tolu Fittings, a well-respected manufacturer and supplier located in Abuja, Nigeria, is known for crafting top-notch **Stainless Steel 309S Pipe Fittings** that excel in high-temperature and corrosive settings. These fittings are produced with cutting-edge technology and high-quality raw materials, ensuring they are durable, precisely made, and resistant to oxidation and scaling. With their remarkable strength and toughness even at elevated temperatures, Tolu Fittings’ Stainless Steel 309S Pipe Fittings are perfect for industries like petrochemical, power generation, furnace construction, and heat treatment processing.
| Product | Stainless Steel 309S Pipe Fittings |
| Equivalents | (UNS S30908, 1.4833) |
| Standard | ASTM A403 / ASME SA403 |
| Items | Pipe Fittings |
| Size | Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″) |
| Dimensions | ASME / ANSI – B 16.9, ASTM A403 – ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| Schedule | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. Custom Thickness |
| Fittings Type | Butt Weld, Screwed & Socket Weld, Flanges, Instrumentation |

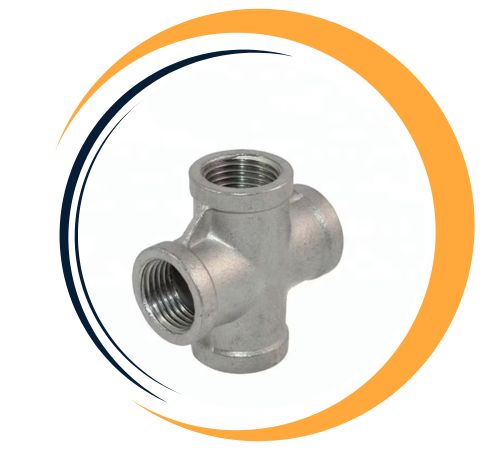

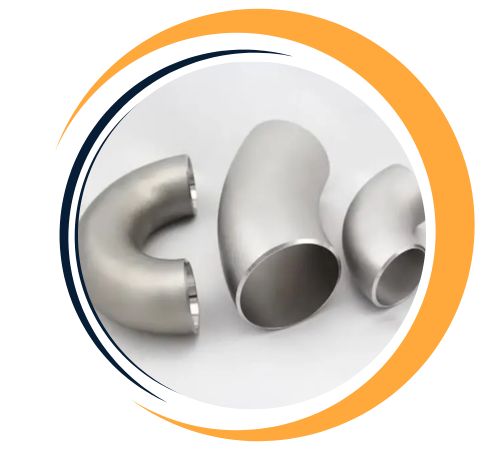

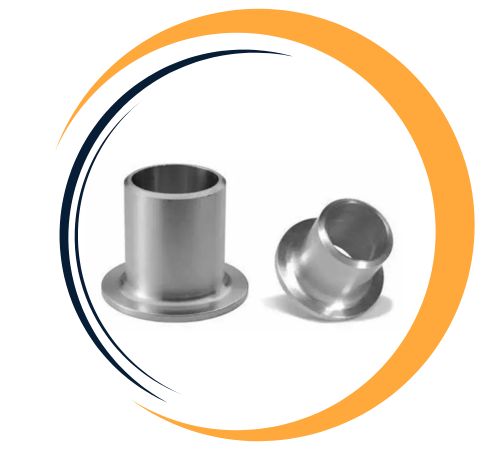

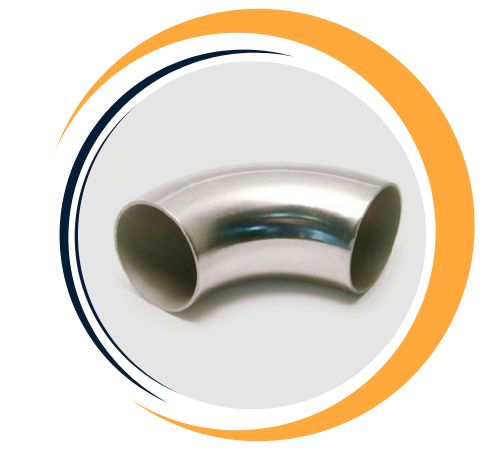

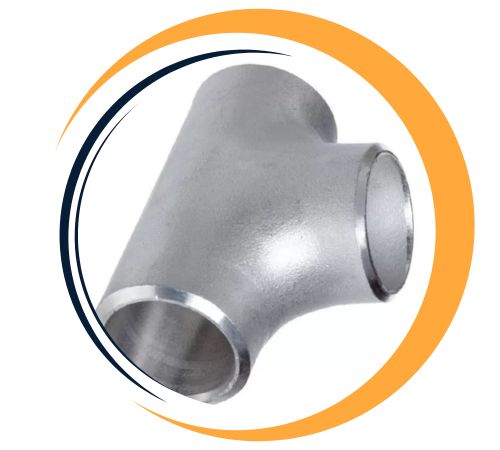

| Other Fittings Type | Elbows, Tees, Reducers, Caps, Stub Ends, Flanges (ANSI, Table E, D and H), Nuts, Bolts, Screws, Threaded Bars, Seamless, Welded, Elbow, Tee, Cross, Concentric & Eccentric Reducer, Pipe End Caps, Stub Ends, Bends, Dairy Fittings, etc. |
| Specifications | ASTM, ASME, DIN, GOST, JIS |
| Certification | EN 10204 |
These fittings are made up of chromium (22–24%) and nickel (12–15%) with a low carbon content, which not only boosts their weldability but also minimizes the chances of carbide precipitation during welding. They boast a tensile strength of around 515 MPa and a yield strength of about 205 MPa, all while maintaining good ductility and mechanical stability under high heat. This alloy is particularly resistant to oxidation, carburization, and hot corrosion, even at temperatures reaching up to 1000°C.
| ELEMENT | SS 309S |
|---|---|
| NI | 12.0 – 15.0 |
| C | 0.08 max |
| MN | 2.0 max |
| P | 0.045 max |
| S | 0.030 max |
| SI | 1.0 max |
| CR | 22.0 – 24.0 |
| MO | 0.75 max |
| 309 | 309S | |||
|---|---|---|---|---|
| Typical | Minimum | Typical | Minimum | |
| Tensile Strength MPa | 560 | 515 | 540 | 515 |
| Proof Stress(0.2% Offset) MPa | 285 | 205 | 280 | 205 |
| Elongation (Percent in 50mm) | 54 | 40 | 54 | 40 |
| Hardness (Brinell) | 164 | – | 159 | – |
| Endurance (fatigue) limit, MPa | 260 | – | 260 | – |
Tolu Fittings one of the largest suppliers of Stainless Steel 309S Pipe Fittings in Abuja, Nigeria. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 309S is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 309S Pipe Fittings in the Nigeria.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 309S Pipe Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| SS 309S | S30908 | 1.4828 |
Stainless Steel 309S Pipe Fittings offer outstanding heat and oxidation resistance, making them ideal for high-temperature applications up to 1000°C. Their low carbon content enhances weldability, reducing the risk of intergranular corrosion and ensuring long-lasting durability. These fittings exhibit excellent resistance to thermal cycling and are highly resistant to corrosion in both acidic and alkaline environments. They maintain structural integrity under high-pressure conditions and offer superior strength, flexibility, and toughness. Stainless Steel 309S fittings are easy to fabricate, providing reliable and efficient solutions for industries such as petrochemical, power generation, and chemical processing.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 309S Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@tolufittings.com.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Stainless Steel 309S Pipe Fittings are commonly used in situations that demand strength, heat resistance, and protection against corrosion. They are ideal for components in furnaces, heat exchangers, boilers, and incinerators. In refineries and chemical plants, these fittings thrive in environments with sulfur compounds and oxidizing gases. They also find applications in thermal processing equipment, kiln linings, and exhaust systems. Thanks to their excellent weldability, thermal stability, and corrosion resistance, they are well-suited for long-term use in both industrial settings and high-temperature service conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
