Tolu Fittings, a well-respected manufacturer and supplier located in Abuja, Nigeria, is known for crafting top-notch Stainless Steel 316/316L Buttweld Fittings that adhere to international standards for performance and reliability. These fittings are engineered to provide exceptional resistance to corrosion, oxidation, and high temperatures, making them perfect for tough industrial settings. Thanks to their advanced manufacturing techniques and rigorous quality control, Tolu Fittings guarantees durability, precision, and consistent performance. Their Stainless Steel 316/316L Buttweld Fittings are extensively utilized across various industries, including petrochemical, oil and gas, power generation, and food processing, ensuring safe and efficient piping systems.
| Specifications | ASTM A403 / ASME SA403 |
|---|---|
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Stainless Steel 316/316L Buttweld Fittings are a type of molybdenum-bearing austenitic stainless steel, containing 16–18% chromium, 10–14% nickel, 2–3% molybdenum, along with trace amounts of carbon, manganese, and silicon. The addition of molybdenum boosts resistance to pitting and crevice corrosion, while the low-carbon content in 316L helps reduce carbide precipitation during welding. These fittings boast a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. They also offer excellent formability, toughness, and corrosion resistance in both chloride and acidic environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | min. | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – | |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
| 316L | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
Tolu Fittings is a leading supplier of Stainless Steel 316 Buttweld Fittings in Abuja, Nigeria. We offer an extensive range of Stainless Steel 316L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 Fittings | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L Fittings | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316 / 316L Buttweld Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 316/316L Buttweld Fittings provide excellent corrosion resistance, especially in harsh environments such as the marine and chemical industry, and the presence of molybdenum provides superior strength, durability and superior heat resistance against, making it ideal for important projects. The lower carbon content of 316L reduces the risk of sensitivity and intergranular corrosion, and enhances weldability. These materials are highly resistant to pitting and cravis corrosion, providing long service life. In addition, it is inert, easy to maintain, and provides flexible and leak-proof connections to plumbing systems.

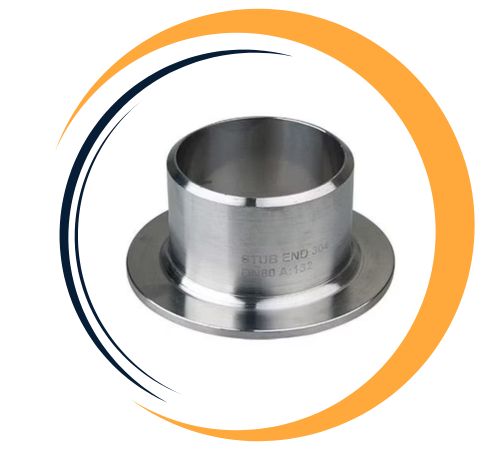

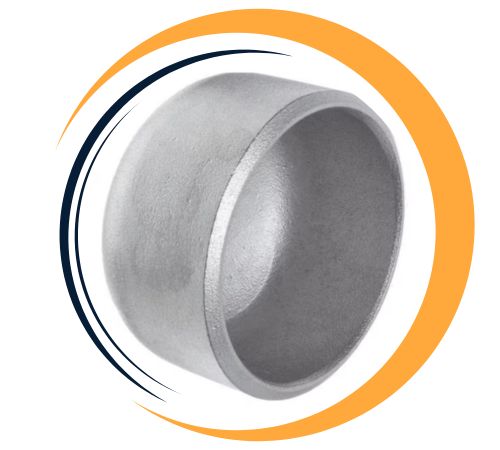

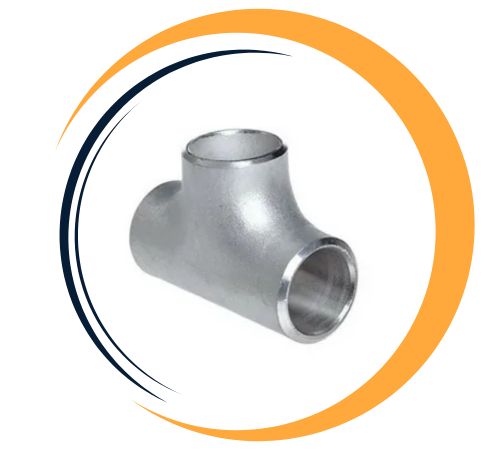

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) | Center to End (inches) | Center to End (inches) | Lap Diameter (inches) | Long Length (inches) | Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Stainless Steel 316 / 316L Buttweld Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
Stainless Steel 316/316L Buttweld Fittings are commonly found in industries that require high levels of corrosion and heat resistance. They are particularly suited for use in chemical and petrochemical plants, oil refineries, power generation systems, marine settings, and food processing facilities. Additionally, these fittings are employed in heat exchangers, pressure vessels, and pharmaceutical equipment due to their outstanding hygiene and strength. Their unique blend of durability, weldability, and resistance to harsh chemicals makes Stainless Steel 316/316L Buttweld Fittings a go-to choice for long-lasting, reliable industrial piping solutions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
