Stainless Steel 321 / 321H Buttweld Fittings Manufacturer and Supplier In Abuja, Nigeria

Tolu Fittings is a reputable manufacturer and supplier located in Abuja, Nigeria, specializing in top-notch **Stainless Steel 321/321H Buttweld Fittings** designed for outstanding performance in high-temperature and corrosive settings. These fittings are fortified with titanium, which gives them remarkable resistance to intergranular corrosion and oxidation, even after being subjected to heat. Crafted using cutting-edge techniques and high-quality raw materials, Tolu Fittings guarantees exceptional strength, precision, and durability. You’ll find Stainless Steel 321/321H Buttweld Fittings widely utilized in the petrochemical, power generation, oil and gas, and chemical industries, where heat resistance and reliability are absolutely essential.

Stainless Steel 321 Pipe Elbow In Nigeria, Stainless Steel 321H Pipe Fittings United kingdom, SS 321 Buttweld Elbow Abuja, Stainless Steel S32100 Seamless Fittings Exporter Lagos, Stainless Steel 1.4541 Butt Weld Pipe Fittings in Ibadan, Stainless Steel 321H Two Joint Pipe Fittings Port Harcourt, 321 Stainless Steel Welded Fittings Manufacturers in Kano, Stainless Steel 321H Buttweld Fittings In Nigeria, ASTM A403 WP3 321 Stainless Steel Buttweld Fittings Supplier in Abuja, Nigeria.

Stainless Steel 321 / 321H Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP321)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 321
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

These fittings are made up of chromium (17–19%), nickel (9–12%), and titanium (up to 0.7%), which stabilizes the alloy and prevents carbide precipitation during the welding process. The 321H variant has a higher carbon content, enhancing its creep strength and stress rupture resistance at elevated temperatures. With a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa, these fittings also boast excellent toughness, weldability, and oxidation resistance up to 870°C.

Stainless Steel 321 / 321H Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	N	Ni	Ti
SS 321	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 19.00	0.10 max	9.00 – 12.00	5(C+N) – 0.70 max
SS 321H	0.04 – 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 19.00	0.10 max	9.00 – 12.00	4(C+N) – 0.70 max

Stainless Steel 321 / 321H Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1457 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 321 Buttweld Fittings Cross in Nigeria, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 321H Butt Weld Pipe Cap Abuja, Stainless Steel 321 Eccentric Reducer Lagos, Stainless Steel 321H Equal Tee Ibadan, 321 Stainless Steel Reducer in Port Harcourt, Stainless Steel 321H SR Elbow Exporter in Kano,

Largest Stainless Steel 321 / 321H Buttweld Fittings Supplier in Abuja, Nigeria

Tolu Fittings is a leading supplier of Stainless Steel 321 Buttweld Fittings in Abuja, Nigeria. We offer an extensive range of Stainless Steel 321H Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 321 / 321H Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
SS 321	1.4541	S32100	SUS 321	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	X12CrNiTi18-9

Why Choose Stainless Steel 321 / 321H Buttweld Fittings from Tolu Fittings?

Stainless Steel 321 Buttweld Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S32109 Stub End Uk, ANSI B16.9 Stainless Steel 321 Pipe Fittings United kingdom, Stainless Steel 321H Pipe Bend Stockist in Abuja, Stainless Steel 321 Pipe Nipple Manufacturer & Exporter in Lagos, Stainless Steel 1.4878 Butt Weld Pipe Fittings in Ibadan, Stainless Steel 321H Pipe Two Joint Pipe Fittings Port Harcourt, 321 Stainless Steel Pipe Welded Fittings Manufacturers in Kano, Stainless Steel 321 Pipe Butt weld Fittings In Nigeria, ASTM A403 Stainless Steel 321H Pipe Butt Weld Fittings Supplier in Abuja, Nigeria.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Stainless steel 321/321H Buttweld Fittings provide excellent resistance to intergranular corrosion, making them ideal for high temperature applications. Their titanium stabilizer ensures excellent strength and durability even in extreme temperatures. The fittings are resistant to oxidation and scaling, maintaining structural integrity at elevated temperatures. Weldability and flexible formability make them suitable for complex piping systems. Their improved creep and stress breakdown properties ensure reliability in harsh environments. Furthermore, these materials are low cost, require little maintenance, and are versatile in the chemical, petrol and power industries.

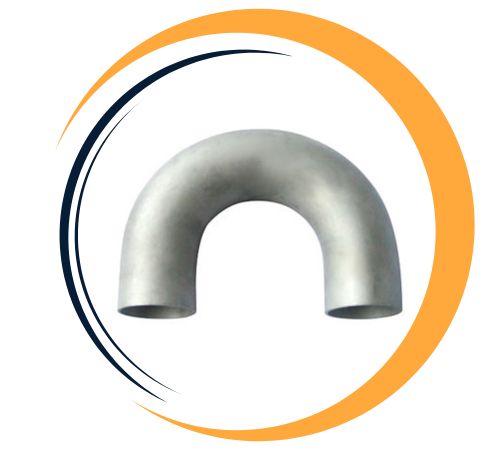

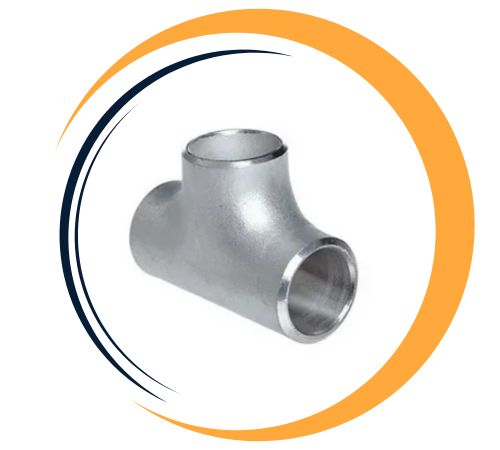

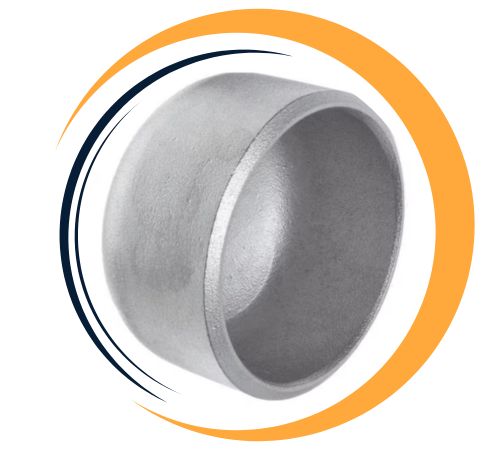

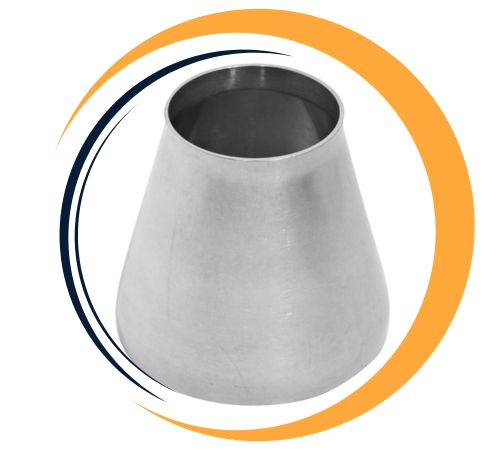

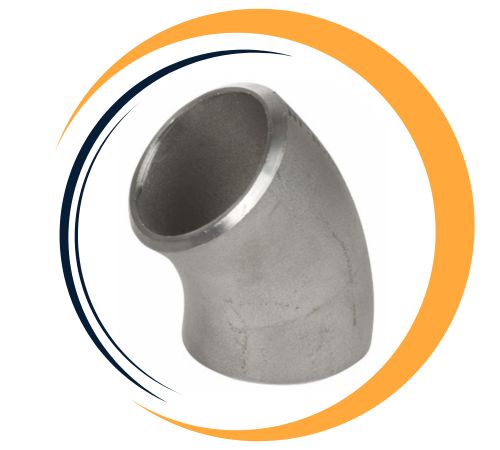

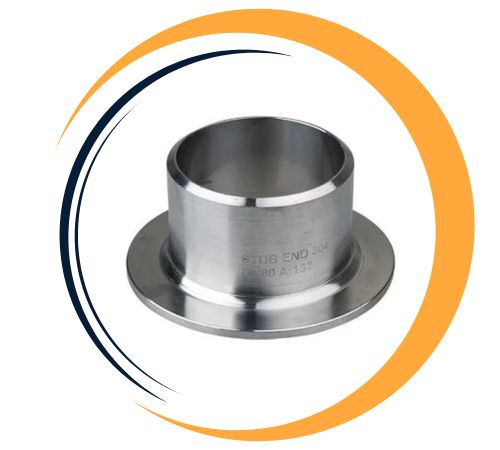

Types of Stainless Steel 321 / 321H Buttweld Fittings

Stainless Steel 321 / 321H Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 321 / 321H Buttweld Fittings?

Yes, custom sizes for Stainless Steel 321 / 321H Buttweld Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.

ASTM A403 Stainless Steel 321 Butt Weld Cross in Nigeria, Stainless Steel 1.4878 Buttweld Pipe Fittings United kingdom, SS 321H Butt Weld Pipe Cap Abuja, Stainless Steel 321 Eccentric Reducer Lagos, Stainless Steel 321H Equal Tee Ibadan, 321 Stainless Steel Reducer in Port Harcourt, SS 321H SR Elbow Exporter in Kano,

Application Industry of Stainless Steel 321 / 321H Buttweld Fittings

Stainless Steel 321/321H Buttweld Fittings are commonly used in situations where there’s continuous exposure to heat and corrosive environments. They’re perfect for exhaust manifolds, heat exchangers, furnace components, and pressure vessels. In the chemical and petrochemical sectors, they’re employed for handling hot organic acids and process fluids. Power plants utilize them in superheater and reheater tubes, while the oil and gas industry benefits from their stability in fluctuating thermal conditions. Their ability to maintain mechanical integrity and resist scaling makes them ideal for aerospace, marine, and refinery applications.
