Tolu Fittings, a prominent manufacturer and supplier located in Abuja, Nigeria, is dedicated to crafting top-notch Stainless Steel 321/321H Forged Fittings that adhere to international industrial standards. Renowned for their exceptional strength, heat resistance, and corrosion protection, these fittings are tailored for demanding applications across various sectors. Tolu Fittings merges cutting-edge manufacturing technology with rigorous quality assurance to produce precision-engineered products that guarantee reliability and longevity. Their Stainless Steel 321/321H Forged Fittings find extensive use in the oil and gas, petrochemical, power generation, and chemical processing industries, ensuring secure and durable connections.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings

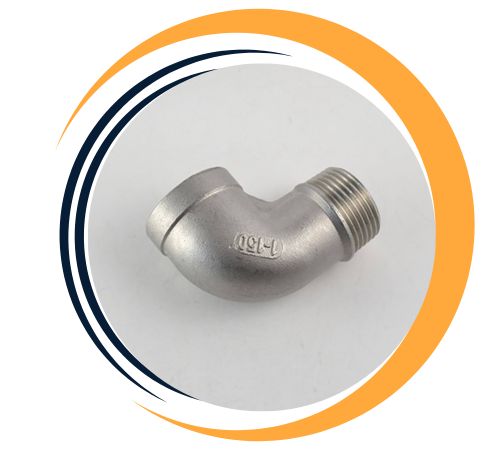

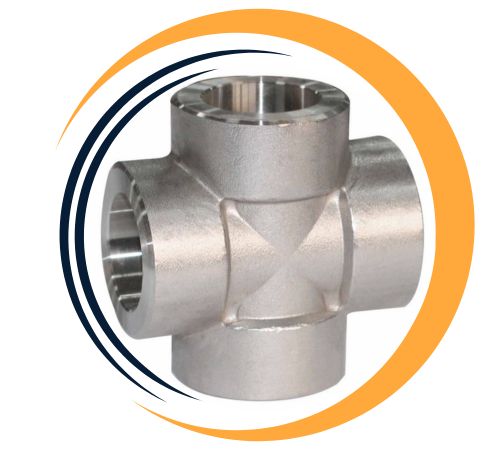

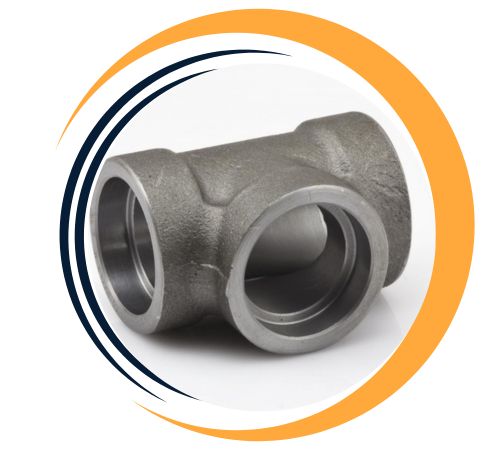

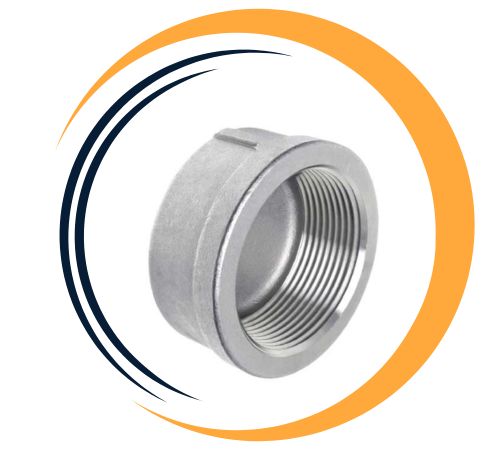

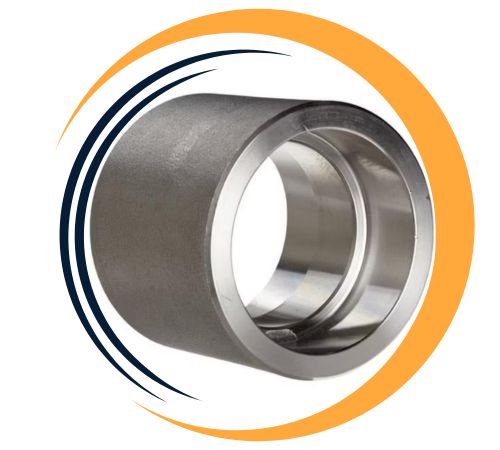

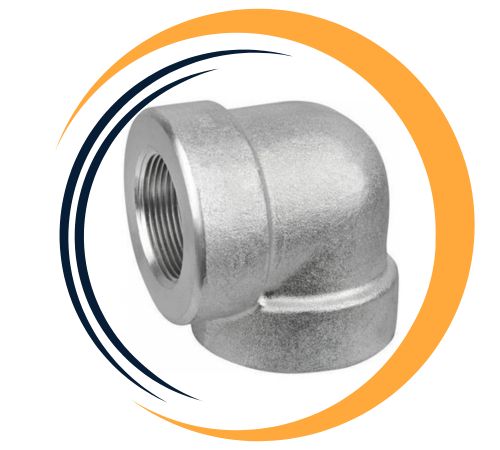

Forged Fittings Items : 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 321 / 321H UNS (S32100, S32109), DIN (1.4541, 1.4878)
Stainless Steel 321/321H Forged Fittings are titanium-stabilized austenitic stainless steels, made up of 17–19% chromium, 9–12% nickel, along with trace amounts of titanium, carbon, and manganese. The addition of titanium enhances resistance to intergranular corrosion, while the higher carbon content in 321H boosts high-temperature strength. These fittings boast a tensile strength of about 515 MPa, a yield strength of around 205 MPa, and an elongation of 40%. They also demonstrate excellent oxidation resistance up to 870°C, good toughness, and outstanding creep resistance under high temperatures.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Tolu Fittings is a leading supplier of Stainless Steel 321/321H Forged Fittings in Abuja, Nigeria. We offer an extensive range of Stainless Steel 321/321H Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
Choose Stainless Steel 321/321H Forged Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 321/321H forged fittings offer many advantages, including resistance to high temperature oxidation and corrosion, making them ideal for use in high-temperature environments The addition of titanium stabilizes the material, especially prevents sensitivity and intergranular corrosion in welds. These fittings have excellent strength, high tensile and yield characteristics, and excellent formability, ensuring durability and long-term performance in critical applications Stainless steel 321H, with a high carbon content of 1,000. for higher strength at higher temperatures. Overall, they are highly reliable in the petroleum, aerospace, and power sectors.
Yes, custom sizes for Stainless Steel 321/321H Forged Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com
| Fitting Schedule/Class | Pipe Size – Pipe Fitting | Fitting Connection Type | Pipe Fitting Material | Max. Pressure |
|---|---|---|---|---|
| Class 150 | 1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1/2″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/2″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 3″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 321 | 150 psi |
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
These Stainless Steel 321/321H Forged Fittings are widely utilized in industries that function in high-temperature and corrosive environments. They are perfect for heat exchangers, exhaust systems, refinery equipment, furnace components, and boiler tubes. Additionally, these fittings are employed in the petrochemical, pharmaceutical, and food processing sectors, where thermal stability and corrosion resistance are essential. Their strength and durability make them ideal for applications involving pressure vessels, piping systems, and heat transfer operations. With Stainless Steel 321/321H Forged Fittings, you can count on long-lasting performance and reliability, even in the toughest operating conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
