Tolu Fittings stands out as a premier manufacturer and supplier located in Abuja, Nigeria, specializing in high-quality **Stainless Steel 348 Pipe Fittings** designed for extreme temperatures and harsh environments. These niobium-stabilized fittings are built to resist intergranular corrosion, oxidation, and scaling, even after being exposed to heat for extended periods. With cutting-edge technology and top-notch materials, Tolu Fittings guarantees durability, precision, and reliable performance. Stainless Steel 348 Pipe Fittings are perfect for use in the chemical, petrochemical, power generation, and oil and gas sectors, where both corrosion resistance and high mechanical strength are crucial.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
These fittings are made up of chromium (17–19%), nickel (9–13%), and niobium (which is 8–10 times the carbon content) to stabilize the material, preventing carbide precipitation during welding and boosting high-temperature stability. This unique composition provides excellent oxidation resistance up to 870°C and outstanding protection against intergranular corrosion. On the mechanical side, these fittings boast a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa, along with good creep strength, toughness, and weldability at elevated temperatures.
| Element | Content (%) |
|---|---|
| Iron, Fe | 66 |
| Chromium, Cr | 19 |
| Nickel, Ni | 11 |
| Manganese, Mn | 2.0 |
| Silicon, Si | 1.0 |
| Nb + Ta | 0.8 |
| Cobalt, Co | 0.2 |
| Tantalum, Ta | 0.60-1.00 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8 g/cm3 | 0.289 lb/in³ |
| Melting point | 1427°C | 2600°F |

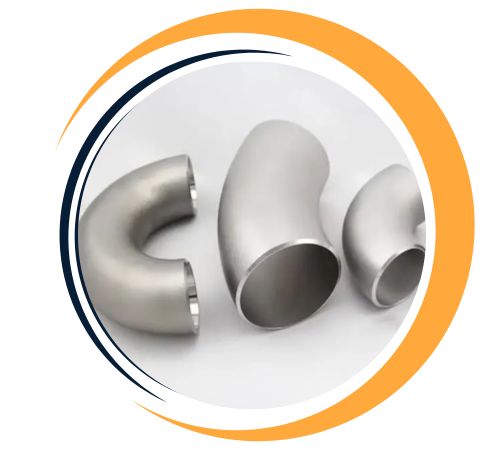

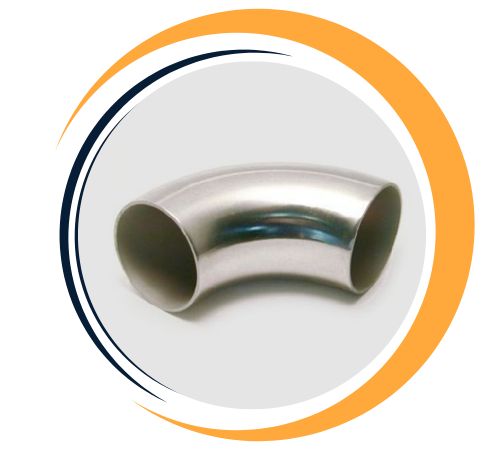

Tolu Fittings one of the largest suppliers of Stainless Steel 348 Pipe Fittings in Abuja, Nigeria. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 348 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 348 Pipe Fittings in the Nigeria.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 348 Pipe Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 655 MPa | 95000 psi |
| Yield strength (@ strain 0.200%) | 275 MPa | 39900 psi |
| Izod impact | 120 – 160 J | 88.5 – 118 ft-lb |
| Charpy impact | 160 J | 118 ft-lb |
| Shear modulus (typical for steel) | 77.0 GPa | 11200 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 45% | 45% |
| Hardness, Brinell (converted from Rockwell B hardness) | 147 | 147 |
| Hardness, Knoop (converted from Rockwell B hardness) | 164 | 164 |
| Hardness, Rockwell B | 85 | 85 |
| Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
SS 348 Pipe Fittings offer excellent resistance to intergranular corrosion, particularly after welding, thanks to the addition of titanium. This makes them ideal for high-temperature and pressure applications in industries like chemical processing, aerospace, and power generation. They maintain their strength and durability at elevated temperatures, ensuring long-lasting performance. Stainless Steel 348 also provides excellent oxidation resistance, making it suitable for harsh environments. With good weldability and formability, these fittings are easy to fabricate and ensure reliable, efficient operation in demanding industrial conditions.
Yes, custom sizes are available for Stainless Steel 348 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@tolufittings.com.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient ( @ 0-100°C/32-212°F) | 17.3 µm/m°C | 9.61 µin/in°F |
| Thermal conductivity (@ 100°C/212°F) | 16.3 W/mK | 113 BTU in/hr.ft².°F |
Stainless Steel 348 Pipe Fittings are extensively utilized in industries that face extreme heat and corrosive conditions. In the power generation field, they are commonly found in heat exchangers, boiler tubes, and superheaters. Chemical and petrochemical facilities rely on them for process piping and reactors that handle hot acids and gases. The oil and gas sector uses them in refineries and high-pressure pipelines. Moreover, they are also applied in aerospace, marine, and food processing systems, where long-lasting performance, thermal stability, and oxidation resistance are vital for smooth operations.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
