Tolu Fittings, a prominent manufacturer and supplier located in Abuja, Nigeria, is dedicated to offering top-notch Stainless Steel 410 Buttweld Fittings tailored to the diverse needs of various industrial sectors. Renowned for their durability, resistance to corrosion, and precise engineering, these fittings are perfect for both moderate and high-temperature applications. With a strong focus on quality assurance, cutting-edge manufacturing technology, and ensuring customer satisfaction, Tolu Fittings provides products that meet international standards. Their Stainless Steel 410 Buttweld Fittings find extensive use in industries like oil and gas, petrochemical, power generation, and food processing.
| Specifications | ASME SA403 / ASTM A403 |
|---|---|
| Dimension Standard | ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49 |
| Standard Size Range | 1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded) |
| Manufacturing Type | Fabricated / Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Wall Thickness / Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| End Connection | Butt Weld |
| Melting Point | 1400-1450°C for (WP410) |
| Outside Diameter (OD) | Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″) |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Other Standards | MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010 |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103 |
| Materials | AISI 410 |
| Two Halve / Two Joint Buttweld Fittings Size | 6″ to 48″ |
| Manufacturing Specification | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 |
| A403 SS Seamless Fittings | Size: 15 NB to 300 NB | Sch.& Swg: Sch.5 to Sch.XXs |
| A403 SS Welded Fittings | Size: 15 NB to 600 NB | Sch.& Swg: Sch.5 to Sch.80s |
These fittings are made from martensitic stainless steel alloys, primarily containing 11.5–13.5% chromium, 0.08–0.15% carbon, along with trace amounts of manganese, silicon, and nickel. This unique blend gives them impressive strength, hardness, and moderate resistance to corrosion. They boast a tensile strength ranging from 450–750 MPa, a yield strength of about 205 MPa, and an elongation of 20%. Additionally, they show good resistance to scaling at high temperatures, excellent wear resistance, and can be easily heat-treated to enhance their mechanical properties.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 410 | min. | – | – | – | – | – | 11.5 | – | – | – |
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | – | 0.75 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 410 | 480 | 275 | 16 | 95 | 201 |
Tolu Fittings is a leading supplier of Stainless Steel 410 Buttweld Fittings in Abuja, Nigeria. We offer an extensive range of Stainless Steel 410 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 410 | S41000 | 410S21 | 56A | 1.4006 | X12Cr13 | 2302 | SUS 410 |
Stainless Steel 410 Buttweld Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 410 buttweld fittings provide excellent corrosion resistance, especially in soft to low level environments, making them ideal for use in industries such as petrochemical and food processing They provide excellent mechanical properties such as strength and density, especially in density. These materials are durable, corrosion resistant, and easy to scratch, providing a strong waterproof bond. Stainless steel 410 also provides excellent heat resistance and can withstand high temperatures. These features make them a reliable choice for applications requiring high strength and corrosion resistance.

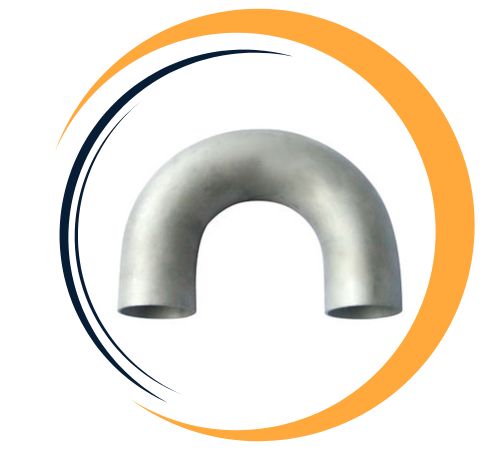

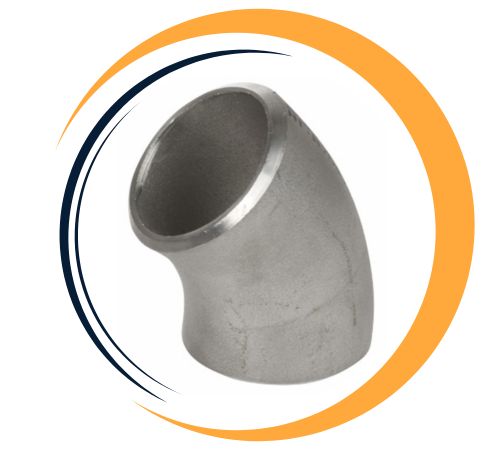

| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 410 Buttweld Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
Stainless Steel 410 Buttweld Fittings are commonly utilized in applications that demand high mechanical strength along with resistance to oxidation and corrosion. They are extensively used in steam and gas turbine components, oil and gas refineries, chemical processing units, power generation plants, and marine equipment. Furthermore, these fittings are well-suited for automotive exhaust systems, heat exchangers, and pressure vessels. Their capability to endure high temperatures and harsh environments makes them ideal for both industrial and structural applications, ensuring reliable performance even in the most challenging conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
