Tolu Fittings, a reputable manufacturer and supplier located in Abuja, Nigeria, has built a solid reputation for providing top-notch Stainless Steel 410 Forged Fittings that adhere to international standards. These fittings are celebrated for their remarkable strength, hardness, and resistance to corrosion, making them perfect for tough industrial settings. With state-of-the-art manufacturing facilities and a strong focus on quality assurance, Tolu Fittings guarantees that every product delivers outstanding performance and reliability. Their Stainless Steel 410 Forged Fittings find extensive use in various industries, including oil and gas, petrochemical, power generation, and chemical processing, where they contribute to efficient and durable piping systems.
| Standard : | ASTM A182 / ASME SA182 |
| Grade : | S41000/ 410 / 1.4006 |
| Specifications : | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size : | 1/8″~4″ (DN6~DN100) |
| Pressure Class : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

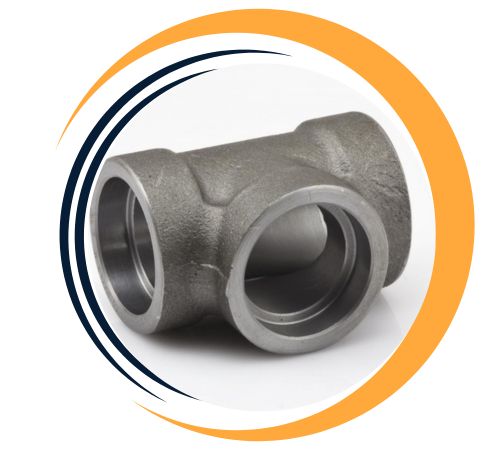

| Type : | Socketweld Fittings, Screwed-Threaded Fittings |
Stainless Steel 410 Forged Fittings are made from martensitic stainless steel alloys, containing 11.5–13.5% chromium, 0.08–0.15% carbon, along with trace amounts of manganese, silicon, and nickel. This specific blend strikes a balance between high strength, moderate corrosion resistance, and good hardness. They boast a tensile strength ranging from about 450–750 MPa, a yield strength of around 205 MPa, and an elongation of 20%. These fittings also demonstrate excellent resistance to scaling and wear at high temperatures and can be heat-treated to enhance their mechanical properties.
| C | Mn | Si | P | S | Cr | Ni |
| 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 11.5 max: 13.5 | 0.50 max |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 410 | 65 (450) | 30 (205) | 20 | 217 | 96 |
Tolu Fittings is a leading supplier of Stainless Steel 410 Forged Fittings in Abuja, Nigeria. We offer an extensive range of Stainless Steel 410 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Stainless Steel | Tradename | UNS no. | Werkstoff No. |
| 410 | 410 Stainless | S41000 | 1.4006 |
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
| at 68°F: 0.276 | 14.4 at 212°F | 56 at 68°F | 29 | 5.90 at 68 – 392°F | 0.11 at 68°F to 212°F | 2700 to 2790 |
| 6.5 at 68 – 1112°F |
Choose Stainless Steel 410 Forged Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 410 forged fittings provide excellent corrosion resistance, high strength and durability, making them ideal for rugged applications Their resistance to oxidation and wear ensures extended service even in harsh environments. These materials are also highly resistant to acids and chemicals, providing a wide range of applications in industries such as petrochemicals, food processing, and power plants in addition to improving the performance of welded 410 stainless steel devices ease of access, allowing flexibility during installation. Its high hardness and strength make it suitable for both high and low temperatures, making it reliable and safe in critical systems.
Yes, custom sizes for Stainless Steel 410 Forged Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
|---|---|---|---|---|---|---|---|---|---|---|
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
These Stainless Steel 410 Forged Fittings are commonly employed in applications that require strength, heat resistance, and moderate corrosion protection. They are particularly well-suited for steam and gas turbine components, oil refineries, heat exchangers, chemical processing units, and power plants. Moreover, these fittings are ideal for marine equipment, automotive exhaust systems, and pressure vessels. Their ability to maintain mechanical integrity under high stress and temperature conditions ensures they provide long-lasting performance. As a result, Stainless Steel 410 Forged Fittings are a preferred choice for both industrial and structural piping applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
