Tolu Fittings stands out as a top-notch manufacturer and supplier located in Abuja, Nigeria, specializing in high-quality **Stainless Steel Buttweld Fittings** that are built to last, precise, and perform exceptionally well. These fittings are crafted using cutting-edge technology and top-grade stainless steel, ensuring they resist corrosion, oxidation, and high temperatures like champions. Renowned for their strength and sleek finish, they’re perfect for creating secure, leak-proof piping connections. Tolu Fittings serves a variety of industries, including oil and gas, chemical processing, power generation, and marine, delivering durable and efficient solutions that meet international quality standards.
| Grade | SS 304 | Stainless Steel 304 | UNS S30400 |
| Standard | ASTM A403 / ASME SA403 |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Size | 1/2″ NB – 48″ NB |

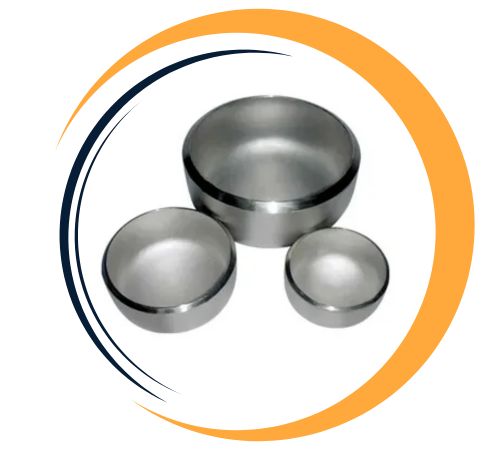

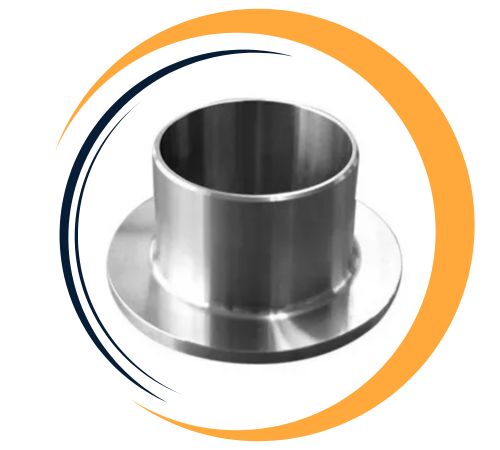

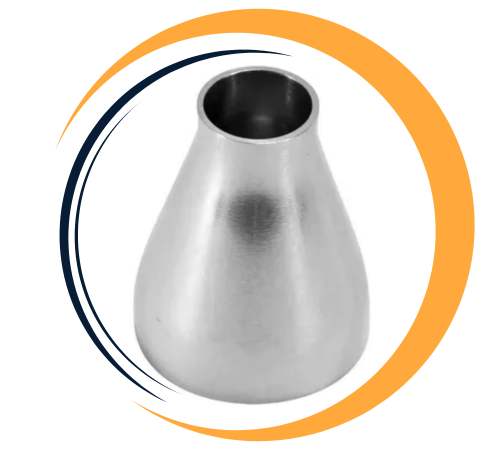

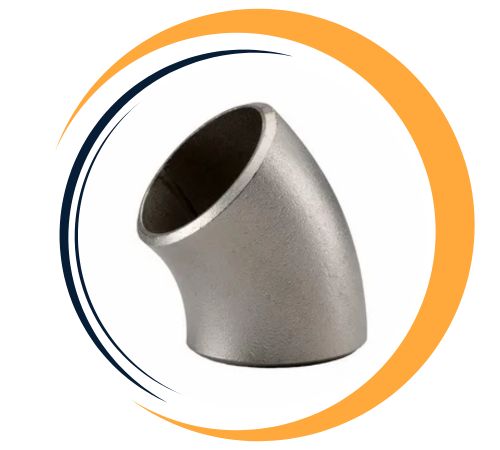

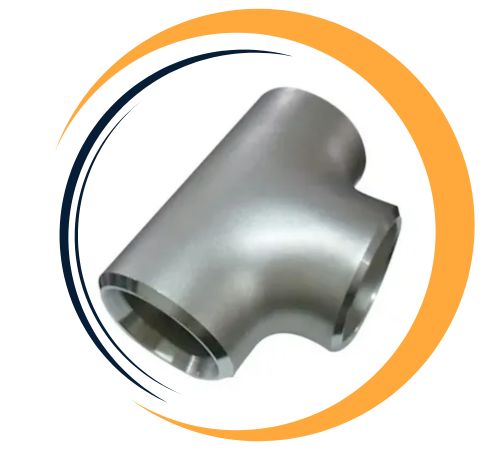

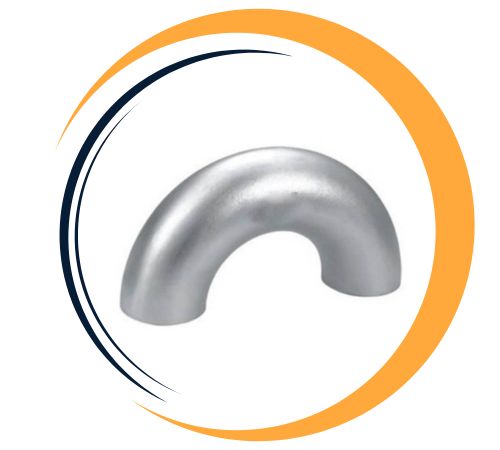

| Form | 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap |
| Schedule | SCH 5 To SCH XXS |
| Type | Seamless / Welded / Fabricated |
When it comes to composition, Stainless Steel Buttweld Fittings typically contain chromium (16–25%), nickel (6–22%), and varying levels of molybdenum, carbon, and iron, depending on the specific grade. This blend gives them remarkable resistance to rust, pitting, and chemical corrosion. On the mechanical side, these fittings boast a tensile strength between 485 and 620 MPa and a yield strength ranging from 205 to 310 MPa, along with impressive ductility and toughness. They’re also heat-resistant, weldable, and maintain their strength and integrity in both low and high-temperature settings.
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 | – |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 10.5 | – |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
Tolu Fittings is a leading supplier of Stainless Steel Buttweld Fittings in Abuja, Nigeria. We offer an extensive range of Nickel Alloy 201 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306/1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
| SS 304H | S30409 | 1.4301 | – | – | – | – | – |
Stainless Steel Buttweld Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
The stainless steel buttweld fitting provides excellent corrosion resistance, and durability in harsh environments. They provide a seamless, smooth surface, reducing turbulence and pressure loss in pipes. These materials are ideal for high-pressure and thermal systems and maintain structural integrity by eliminating frequent joint movements. They are easy to install, cost effective and require little maintenance. Because of their high tensile strength, they resist deformation and withstand mechanical stresses. Available in a variety of sizes and configurations, they are suitable for a variety of industries, including chemical, oil and gas. Their aesthetic finish also makes them suitable for architectural use.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel Buttweld Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
You’ll find Stainless Steel Buttweld Fittings in applications where strength, hygiene, and corrosion resistance are essential. In the chemical and petrochemical sectors, they’re used to transport acids, solvents, and gases. The oil and gas industry relies on them in refineries, offshore rigs, and pipelines. Power plants utilize them for steam and water lines, while the food and beverage sector appreciates their hygienic and easy-to-clean features. Plus, they’re employed in pharmaceuticals, marine engineering, and construction for efficient, long-lasting, and corrosion-resistant piping systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
