Tolu Fittings stands out as a top-notch manufacturer and supplier located in Abuja, Nigeria, with a focus on high-quality **Super Duplex Steel UNS S32750 Forged Fittings**. These fittings are designed to provide exceptional strength, corrosion resistance, and reliability, even in the toughest industrial settings. Crafted with precision and adhering to international standards, Tolu Fittings guarantees consistent performance and a long lifespan. Super Duplex Steel UNS S32750 Forged Fittings find their place in various industries, including oil and gas, petrochemical, marine, and power generation, where durability, pressure handling, and resistance to corrosive environments are crucial.
Specifications : ASTM A182 / ASME SA182
Size : 1/2″NB TO 4″NB IN
Class : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.

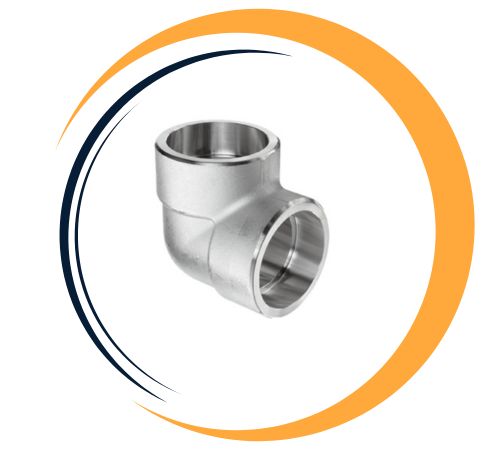

Type : Socket Weld (S/W) and SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings
These fittings are primarily made up of chromium (24–26%), nickel (6–8%), molybdenum (3–5%), and nitrogen, with iron making up the rest. This well-balanced duplex microstructure of ferrite and austenite offers outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking, particularly in chloride-rich environments. They boast a tensile strength of around 795 MPa and a yield strength of about 550 MPa, along with impressive toughness, fatigue resistance, and weldability. Their remarkable mechanical performance and corrosion resistance make them perfect for extreme industrial applications.
| UNS | Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N | Other |
| S32750 | 2507 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 | Cu:0.50 |
| UNS | Grade | Proof Stress 0.2% (MPa) | Tensile Strength (MPa) | Elongation A5(%) | Hardness Max | |
| HB | HRB | |||||
| S32750 | 2507 | 550 | 795 | 15 | 310 | 32* |
Tolu Fittings is a leading supplier of Super Duplex Steel UNS S32750 Fittings in Abuja, Nigeria. We offer an extensive range of Super Duplex Steel UNS S32750 Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex S2750 | S32750 | 1.4410 |
Choose Super Duplex Steel UNS S32750 Forged Fittings from Tolu Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Super Duplex Steel UNS S32750 forged fittings offer several advantages, including exceptional resistance to pitting, crevice, and stress corrosion cracking, making them ideal for harsh environments like offshore and chemical processing industries. The high chromium, molybdenum, and nitrogen content enhances corrosion resistance, while the dual-phase microstructure provides superior strength and toughness. These fittings also exhibit excellent fatigue resistance and high tensile strength, ensuring durability and reliability in critical applications. Their ability to perform under extreme temperatures and pressure conditions adds to their versatility in demanding industries like oil and gas, marine, and petrochemical.
Yes, custom sizes for Super Duplex Steel UNS S32750 Forged Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel UNS S32750 Forged Fittings are essential in industries that require high strength and corrosion resistance. In the oil and gas sector, you’ll find them in offshore platforms, subsea pipelines, and pressure systems. The marine and desalination industries depend on them for seawater cooling, ballast systems, and applications exposed to saltwater. Chemical and petrochemical plants utilize them in process piping and heat exchangers, while power generation facilities rely on them for high-pressure steam and cooling systems. Their durability, resistance, and long service life make them a go-to choice for critical and high-stress environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
