Tolu Fittings is a reputable manufacturer and supplier located in Abuja, Nigeria, focusing on high-quality Titanium Grade 2 Forged Fittings. Crafted with precision and built to last, these fittings excel in tough industrial settings. They’re known for being lightweight, highly resistant to corrosion, and boasting impressive mechanical strength, making them perfect for applications that demand reliability and a long service life. Tolu Fittings guarantees that every product adheres to international standards, catering to a variety of industries, including chemical processing, oil and gas, aerospace, marine, and power generation, all while maintaining consistent quality and top-notch engineering.
| Standards | ASTM B381 / ASME SB381 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Thread | NPT, BSPT, BSPP |
| Test Certificates |
|

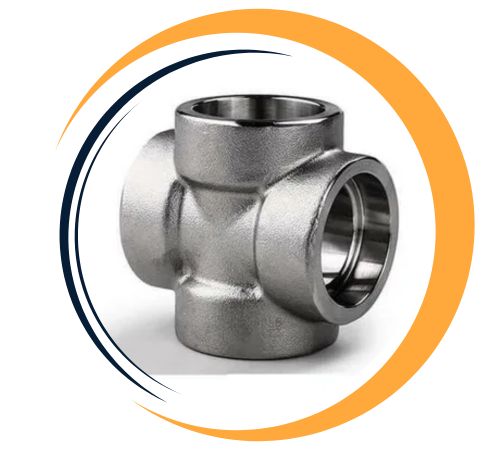

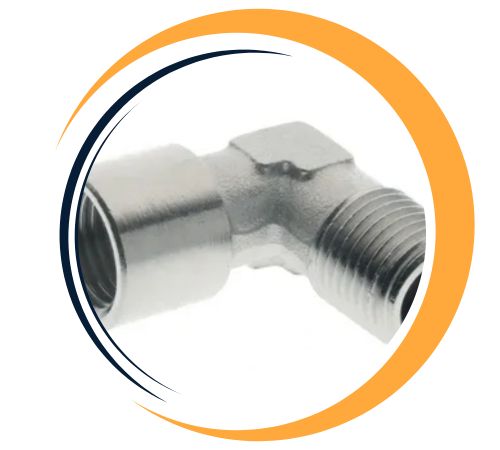

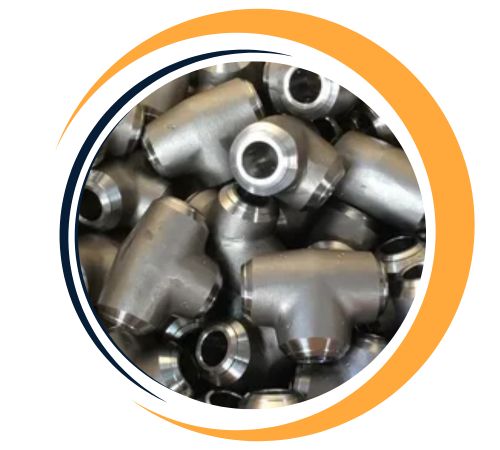

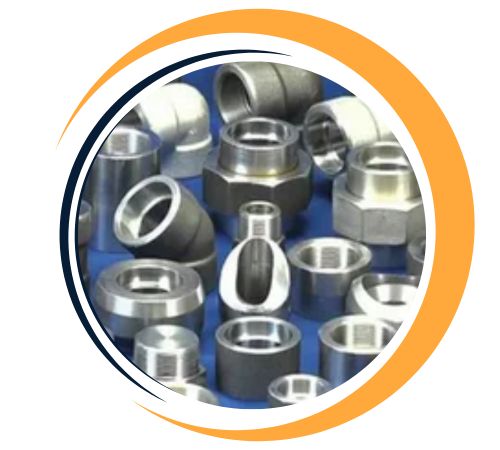

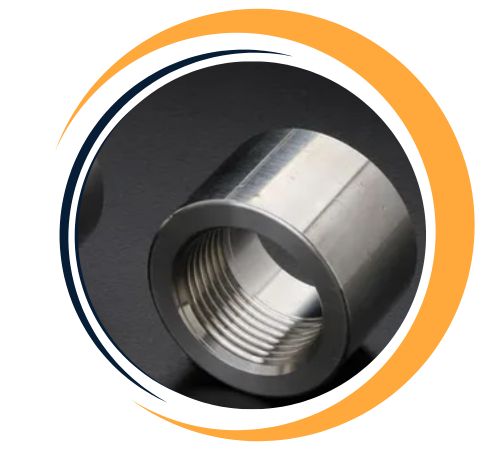

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducer Inserts, Barrel Nipple, Unions, Bushing, Socket Weld / Screwed-Threaded Fittings, Plugs |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
These Titanium Grade 2 Forged Fittings are made up of 99.2% titanium, with small amounts of oxygen, iron, carbon, and nitrogen added to boost their strength and corrosion resistance. They offer remarkable toughness and ductility, featuring a tensile strength of about 344 MPa and a yield strength of around 275 MPa. With an excellent strength-to-weight ratio, good weldability, and resistance to both oxidizing and mildly reducing conditions, these fittings are well-suited for high-performance environments that experience both high pressure and extreme temperature fluctuations.
Tolu Fittings is a leading supplier of Titanium Gr 2 Forged Fittings in Abuja, Nigeria. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Gr 2 Forged Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Nom, Pipe Size | Sock, Bore Diameter B | Depth of Sock, Min | Wall Thickness Minimum | Bore Diameter of Fitting D | Centre to Bottom of Socket | Laying Lengths | Tolerances, ± | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | ||||||||||||
| A | A | E | F | A | E | F | |||||||||||
| Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | ||||||||
| 1/8” | .420 .430 | 3/8 | .125 | .095 | .135 | .124 | .254 .284 | .141 | 7/16 | 7/16 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 1/4 | .555 .565 | 3/8 | .130 | .119 | .158 | .145 | .349 .379 | .235 | 7/16 | 17/32 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 3/8 | .690 .700 | 3/8 | .138 | .126 | .172 | .158 | .478 .508 | .344 | 17/32 | 5/8 | 5/16 | 7/16 | 1/4 | 11/16 | .06 | .12 | .06 |
| 1/2 | .855 .865 | 3/8 | .161 | .147 | .204 | .188 | .607 .637 | .451 | 5/8 | 3/4 | 7/16 | 1/2 | 3/8 | 7/8 | .06 | .12 | .06 |
| 3/4 | 1.065 1.075 | 1/2 | .168 | .154 | .238 | .219 | .809 .839 | .599 | 3/4 | 7/8 | 1/2 | 9/16 | 3/8 | 15/16 | .06 | .12 | .06 |
| 1 | 1.330 1.340 | 1/2 | .196 | .179 | .273 | .250 | 1.034 1.064 | .800 | 7/8 | 1-1/16 | 9/16 | 11/16 | 1/2 | 1-1/8 | .08 | .16 | .08 |
| 1-1/4 | 1.675 1.685 | 1/2 | .208 | .191 | .273 | .250 | 1.365 1.395 | 1.145 | 1-1/16 | 1-1/4 | 11/16 | 13/16 | 1/2 | 1-3/16 | .08 | .16 | .08 |
| 1-1/2 | 1.915 1.925 | 1/2 | .218 | .200 | .307 | .281 | 1.595 1.625 | 1.323 | 1-1/4 | 1-1/2 | 13/16 | 1 | 1/2 | 1-1/4 | .08 | .16 | .08 |
| 2 | 2.406 2.416 | 5/8 | .238 | .218 | .374 | .344 | 2.052 2.082 | 1.674 | 1-1/2 | 1-5/8 | 1 | 1-1/8 | 3/4 | 1-5/8 | .08 | .16 | .08 |
| 2-1/2 | 2.906 2.921 | 5/8 | .301 | .276 | .375 | 2.439 2.499 | 1-5/8 | 1-1/8 | 3/4 | 1-11/16 | .10 | .20 | .10 | ||||
| 3 | 3.535 3.550 | 5/8 | .327 | .300 | .438 | 3.038 3.098 | 2-1/4 | 1-1/4 | 3/4 | 1-3/4 | .10 | .20 | .10 | ||||
| 4 | 4.545 4.560 | 3/4 | .368 | .337 | .531 | 3.996 4.055 | 2-5/8 | 1-5/8 | 3/4 | 1-7/8 | .10 | .20 | .10 | ||||
| ASTM B381 / SB381 | Standard Specification for Titanium and Titanium Alloy Forgings |
| BS21 | Threading. |
| BS3799 | Specification for Forged fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged fittings socket-weld and threaded. Socket Weld and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Titanium fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Titanium Gr 2 Forged Fittings offer numerous advantages, including excellent corrosion resistance, particularly in oxidizing and mildly reducing environments, making them ideal for chemical and marine applications. They are lightweight yet exceptionally strong, with a high strength-to-weight ratio. These fittings also provide outstanding biocompatibility, making them suitable for medical and aerospace applications. Their high ductility allows for easy fabrication, while their durability ensures a long service life even under extreme conditions. Additionally, Titanium Gr 2’s thermal conductivity and resistance to high temperatures enhance its versatility across various industries.
Yes, custom sizes for Titanium Gr 2 Forged Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
You’ll find Titanium Grade 2 Forged Fittings widely used in industries where outstanding corrosion resistance and mechanical performance are crucial. They’re perfect for chemical processing plants, offshore and marine settings, and desalination systems, thanks to their ability to endure seawater and harsh chemicals. In the aerospace industry, their combination of lightweight and strength is highly valued, while in medical applications, their biocompatibility makes them a preferred choice. Moreover, sectors like oil and gas, petrochemical, and power generation rely on these fittings for dependable, leak-free piping systems that ensure operational efficiency and longevity.
