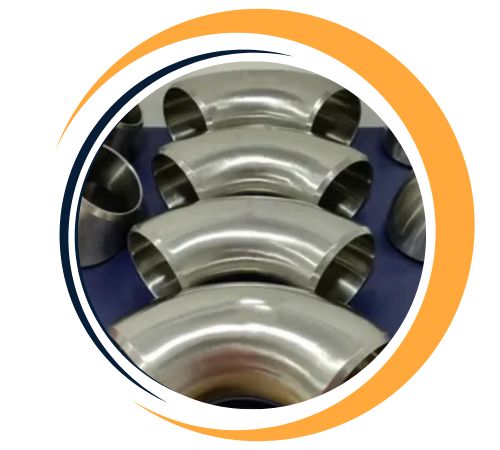

Tolu Fittings stands out as a top-notch manufacturer and supplier located in Abuja, Nigeria, specializing in high-quality Titanium Grade 5 Buttweld Fittings that are built for exceptional performance and durability. Known for their precise engineering and adherence to international standards, these fittings are perfect for industries that require high strength, corrosion resistance, and lightweight construction. Tolu Fittings provides dependable, long-lasting solutions tailored to the needs of various sectors, including aerospace, oil and gas, marine, chemical processing, and power generation, ensuring efficient fluid handling systems even in the toughest conditions.
| Standards | ASTM B363 / ASME SB363 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size |
|
| Type | Seamless / Welded / Fabricated |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
The Titanium Grade 5 Buttweld Fittings are made up of about 90% titanium, 6% aluminum, and 4% vanadium, which boost their strength and heat resistance. They boast impressive mechanical properties, featuring a tensile strength of roughly 895 MPa and a yield strength of around 830 MPa, along with good ductility and toughness. These fittings show remarkable corrosion resistance in both oxidizing and chloride-rich environments, as well as excellent fatigue and creep resistance, making them ideal for high-pressure and high-temperature applications.
Tolu Fittings is a leading supplier of Titanium Grade 5 Buttweld Fittings in Abuja, Nigeria. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 5 Buttweld Fittings from Tolu Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Grade 5 Buttweld Fittings offer several advantages, making them ideal for demanding applications. They provide excellent strength-to-weight ratio, ensuring durability without added bulk. Their outstanding corrosion resistance, especially against harsh chemicals and high temperatures, makes them suitable for aerospace, marine, and chemical industries. The alloy’s high fatigue strength ensures long-lasting performance under stress. Additionally, Titanium Grade 5 fittings exhibit exceptional biocompatibility, making them ideal for medical applications. Their resistance to creep and low thermal expansion further enhances their reliability and longevity in critical systems.
| ASME B16.9 ASTM B363 Grade 5 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
| All Fittings | 90°and 45° Ells and Tees | Reducers and Lap Joint Stub | Caps | 180° Returns | Angularity Tol | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Plane Size (NPS) | Outside(1) Diameter at Bevel | Inside(1) Diameter at End | Wall(2) Thickness | Centre-to- End Dimension A,B,C,M | Overall Length L | Overall Length E | Centre-to- Centre Dimension O | Back-to- Face Dimension K | Alignment at Ends U | Nominal Pipe SIze | Off Angle Q | Off Angle P |
| 1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
| -1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
| 3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
| 4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
| 5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
| -1/16 | ||||||||||||
| 10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
| -1/8 | ||||||||||||
| 20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
| -3/32 | ||||||||||||
Yes, custom sizes for Titanium Grade 5 Buttweld Fittings are available at Tolu Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@tolufittings.com.
You’ll find Titanium Grade 5 Buttweld Fittings widely used in industries where high strength and corrosion resistance are crucial. They’re often utilized in aerospace for hydraulic systems and structural components due to their lightweight yet robust nature. In the marine and offshore sectors, they excel in resisting seawater corrosion. Chemical and petrochemical plants rely on them for managing aggressive fluids, while the oil and gas industry counts on them for essential piping systems. Additionally, they find applications in power generation and medical equipment, where reliability and longevity are key.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
